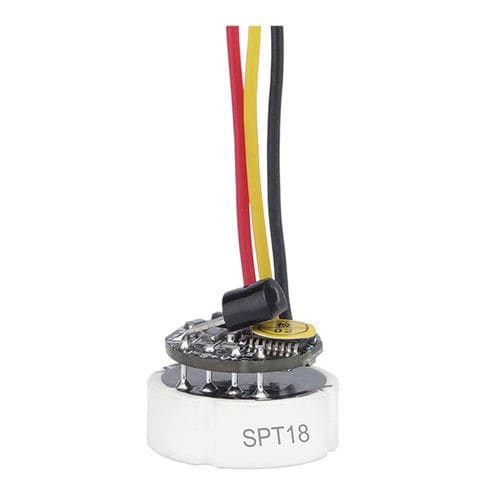

Ceramic pressure sensor SPT18

absolutesiliconthermal

Introduction Ceramic is known as anti-corrosive, crease resistant, good performance under shock/vibration. The working temperature of ceramic can be -40-135C, also has very good isolation performance. SPT18 pressure sensor is using high quality ceramic material and thick film technology, it has wide working temperature, good linearity, good stability, easy application, and most importantly, it is very suitable for OEM application for its low cost. Ceramic Sensor can be used in petroleum industry, automobile, industrial process control, air compressor, water control system, etc. Specification • Supply: 2.5—30VDC • Working temperature:-40C 12512 • Bridge resistance' 11KΩ±20% • Offset output: 0±0.2mv/V (23C) • Response time: <1ms • Sensitivity: 2.9-3.0mv/V • Total accuracy(including non-linearity, repeatability, hysteresis)<±O.5%FS • Offset thermal drift:<±0.02%FS/C Connection options • 4 soldering spots tined • Silicon wires Imm*40mm • Pins 0.55*0.27*9rnm • Flexible PCB
