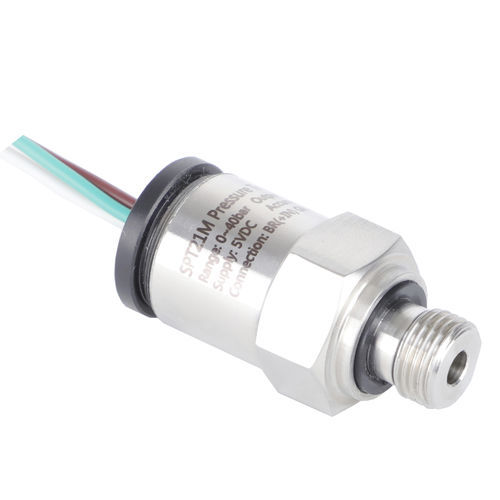

Miniature pressure transmitter SPT21M
absolutemembrane0-10 V

Miniature pressure transmitter - SPT21M - Shaanxi Sier Electronics Co., Ltd. - absolute / membrane / 0-10 V
Miniature pressure transmitter - SPT21M - Shaanxi Sier Electronics Co., Ltd. - absolute / membrane / 0-10 V
Add to favorites
Compare this product

Characteristics

Pressure type
absolute
Technology
membrane
Output
0-10 V, 0-5 V, voltage output, RS-485, 3-wire
Electrical connection
M12 connector
Supply voltage
5VDC
Mounting
threaded
Process connection
G 1/8
Fluid
for gas
Material
stainless steel
Protection level
IP65
Applications
for the petrochemical industry
Other characteristics
temperature-compensated, miniature
Pressure range

Max.: 100 bar
(1,450.38 psi)

Min.: -1 bar
(-14.5 psi)

Precision

0.1 %, 0.25 %, 0.5 %

Process temperature

Max.: 80 °C
(176 °F)

Min.: -30 °C
(-22 °F)

Description

Features • Reliable performance. easy application • Short protection and reverse polarity protection • Gauge, absolute and sealed gauge optional • Range shifting available by our hand-held device Introduction SPT21M is Mini sized pressure transmitter. uses high stable and reliable pressure sensor and special circuit board to produce transmitter. This product is used for measure and control of water system, petroleum. chemi-industry. electric power. hydrology and flow pressure measure. etc.
