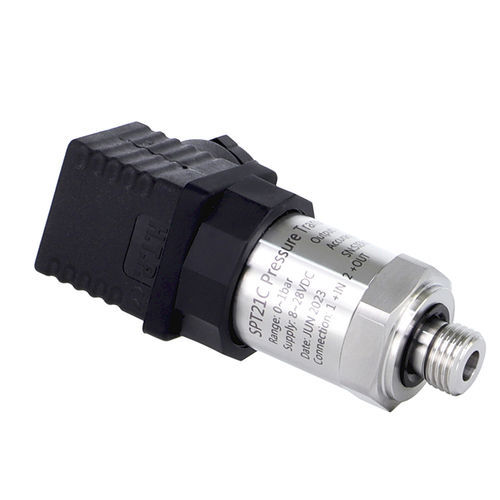

Economical pressure transmitter SPT21C
absolutepiezoresistive4-20 mA

Economical pressure transmitter - SPT21C - Shaanxi Sier Electronics Co., Ltd. - absolute / piezoresistive / 4-20 mA
Economical pressure transmitter - SPT21C - Shaanxi Sier Electronics Co., Ltd. - absolute / piezoresistive / 4-20 mA
Add to favorites
Compare this product

Characteristics

Pressure type
absolute
Technology
piezoresistive
Output
4-20 mA, 0-5 V, RS-485
Electrical connection
M12 connector
Supply voltage
DC
Mounting
threaded
Process connection
G 1/4
Fluid
for gas, for liquids
Material
stainless steel
Protection level
IP65
Applications
process, for the petrochemical industry
Other characteristics
compact, economical
Pressure range

Max.: 1,000 bar
(14,503.77 psi)

Min.: -1 bar
(-14.5 psi)

Precision

0.25 %, 0.5 %

Long-term stability

0.3 %

Process temperature

Max.: 80 °C
(176 °F)

Min.: -30 °C
(-22 °F)

Description

Cost Effective Pressure Transmitter Features • Reliable performance. easy application • Short protection and reverse polarity protection • Gauge, absolute and sealed gauge optional • Compact size Introduction SPT21C is piezo-resistive pressure transmitter, uses high stable and reliable pressure sensor and specialcircuit board to produce transmitter. This product is used for measure and control of petroleum, chemi-industry, electric power. hydrology and flow pressure measure. etc.
