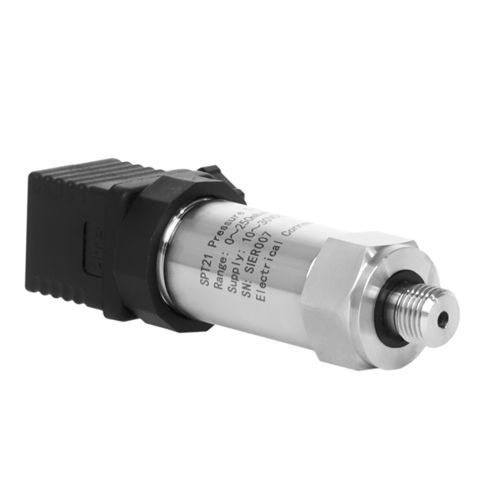

Piezoresistive pressure transmitter SPT21absolute4-20 mA0-5 V
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Technology
- piezoresistive
- Output
- 4-20 mA, 0-5 V, RS-485
- Electrical connection
- M12 connector
- Supply voltage
- DC
- Mounting
- threaded
- Process connection
- G 1/4
- Fluid
- for liquids
- Material
- stainless steel
- Protection level
- IP65
- Applications
- process, for the petrochemical industry
- Other characteristics
- precision, temperature-compensated
- Pressure range
Max.: 1,000 bar
(14,503.77 psi)Min.: -1 bar
(-14.5 psi)- Precision
0.1 %, 0.25 %, 0.5 %
- Long-term stability
0.3 %
- Process temperature
Max.: 80 °C
(176 °F)Min.: -30 °C
(-22 °F)
Description
General Type Pressure Transmitter
Features
• Reliable performance, easy application
• Short protection and reverse polarity protection
• Gauge, absolute and sealed gauge optional
• Offset and full scale adjustable
Introduction
SPT21 is piezo-resistive pressure transmitter, uses high stable and reliable pressure sensor and special circuit board to produce transmitter. This product is used for measure and control of water system, petroleum, chemi-industry, electric power, hydrology and flow pressure measure, etc.
