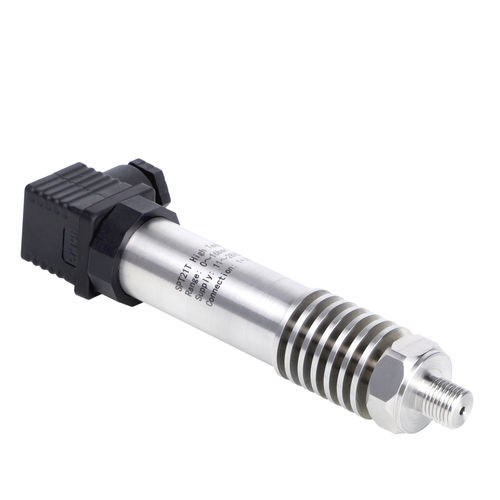

High-temperature pressure transmitter SPT21T
absolutemembrane4-20 mA

High-temperature pressure transmitter - SPT21T - Shaanxi Sier Electronics Co., Ltd. - absolute / membrane / 4-20 mA
High-temperature pressure transmitter - SPT21T - Shaanxi Sier Electronics Co., Ltd. - absolute / membrane / 4-20 mA
Add to favorites
Compare this product

Characteristics

Pressure type
absolute
Technology
membrane
Output
4-20 mA, 0-5 V
Electrical connection
M12 connector
Supply voltage
DC
Mounting
threaded
Process connection
G 1/4
Fluid
for gas, for liquids
Material
stainless steel
Protection level
IP65
Applications
process, for the petrochemical industry
Other characteristics
compact, high-temperature
Pressure range

Min.: -1 bar
(-14.5 psi)

Max.: 1,000 bar
(14,503.77 psi)

Precision

0.1 %, 0.25 %, 0.5 %

Long-term stability

0.3 %

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 250 °C
(482 °F)

Description

Features • Reliable performance, easy application • Short protection and reverse polarity protection • Gauge, absolute and sealed gauge optional • Compact size • Designed for higher temperature application • Range shifting available by our hand-held device Introduction SPT21T is piezo-resistive pressure transmitter, uses high stable and reliable pressure sensor and special circuit board to produce transmitter. This product is used for measure and control of petroleum. chemi-industry, electric power, hydrology and flow pressure measure, etc. Special designed for higher temperature application.
