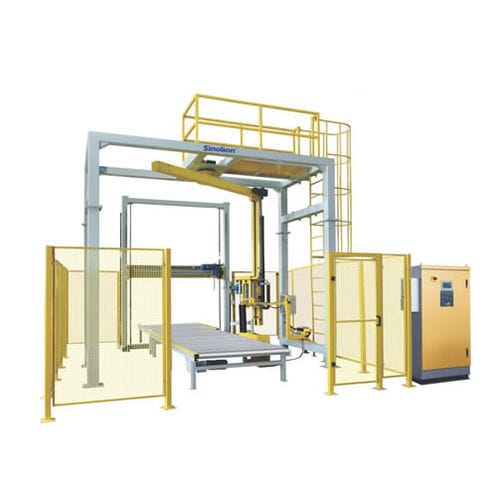

Rotary arm stretch wrapper T1800FZ-PL+FM1800
semi-automaticwith top sheet applicator

rotary arm stretch wrapper
rotary arm stretch wrapper
rotary arm stretch wrapper
rotary arm stretch wrapper
rotary arm stretch wrapper
rotary arm stretch wrapper
Add to favorites
Compare this product


Characteristics

Type
rotary arm
Operating mode
semi-automatic
Other characteristics
with top sheet applicator
Rotational speed

Max.: 15 rpm
(94 rad.min-1)

Min.: 3 rpm
(19 rad.min-1)

Description

Siemens PLC. Photo-eye pallet height sensor. 0-9 separate top ,bottom & up-down wrap count selectors. Photo-eye sensing delay . Reinforce wrap allow more wrap on same location. Film Tension Control adjustment on the panel. 3-15RPM arm variable a speed by frequency changer Separate variable carriage up/down speed Cycle pause capability. Separate start, reset and emergency stop buttons. Manual carriage up/down switch. Turntable jog button. Flash light for machine in operation. Rotary arm stop by safety bumper and reflection photo eye sensing and obstacle in the rotating area. Film carriage Powered pre-stretch system up to 200% to min film consumption (Pre-stretch ratio can be specially made according your requirements.) Film delivery variable speed by separate DC Drive Motor. Film dancer-bar with variable speed output . Rotating Power slip ring provide power required for carriage drive on rotary arm.
