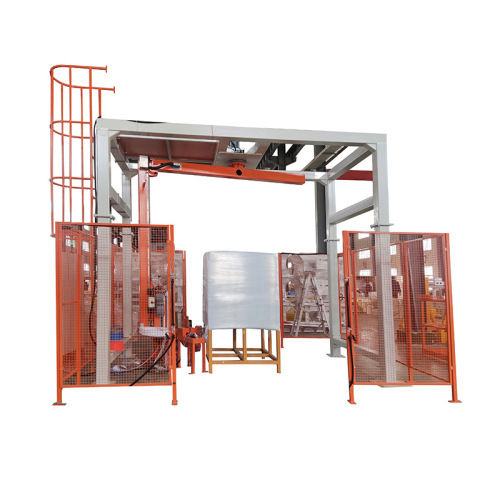

Rotary arm wrapping machine R1800FZ-PLCS
automaticfor the food and beverage industrytransport

rotary arm wrapping machine
rotary arm wrapping machine
rotary arm wrapping machine
rotary arm wrapping machine
rotary arm wrapping machine
rotary arm wrapping machine
rotary arm wrapping machine
Add to favorites
Compare this product


Characteristics

Type
rotary arm
Operating mode
automatic
Product applications
pallet, for the food and beverage industry, for building materials, transport
Height

3,220 mm
(127 in)

Width

1,800 mm
(71 in)

Length

3,440 mm
(135 in)

Maximum wrapping height

2,400 mm
(94.49 in)

Maximum pallet length

Max.: 1,300 mm
(51.18 in)

Min.: 500 mm
(19.69 in)

Maximum pallet width

Max.: 1,200 mm
(47.24 in)

Min.: 500 mm
(19.69 in)

Rotational speed

Max.: 25 rpm
(157 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Voltage

220 V

Power

0.37 kW, 0.55 kW, 0.75 kW, 1.1 kW, 1.5 kW
(0.5 hp, 0.75 hp, 1.02 hp, 1.5 hp, 2.04 hp)

Capacity

Max.: 60 p/h

Min.: 30 p/h

Description

Rotate Arm Pallet Stretch Wrapper is mainly used for the packaging of big cargo or pallet that needs to be transport or stored. The pallet load/cargo is loaded onto the rotating Turntable, which carries the pallet/cargo rotates so as to wrap the goods around. It is widely used in glass products, hardware, electronic appliances, paper-making, ceramics, chemicals, food & beverages, building materials and so on. This type of Auto Rotate Arm Stretch Wrapper is high in packaging efficiency, anti-dust, anti-moisture and reduce the labor cost & material cost. Customized Automatic Rotate Arm Stretch Wrapper available. The Auto rotary arm stretch wrapper is easy to set up. And use widely.
