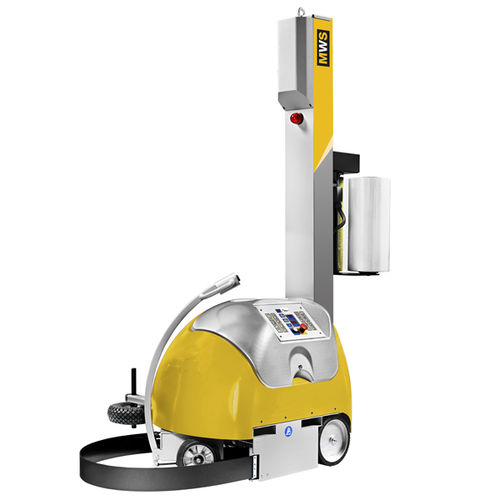

Rotary arm stretch wrapper SELF-PROPELLED WRAPPING ROBOT
manualpalletmobile

rotary arm stretch wrapper
rotary arm stretch wrapper
Add to favorites
Compare this product

Characteristics

Type
rotary arm
Operating mode
manual
Product applications
pallet
Other characteristics
mobile

Description

TECHNICAL FEATURES - NR. 2 BATTERY 12 V – 110 AH SERIAL CONNECTED (SEALED & WITHOUT MAINTENANCE) - AUTONOMY 120/130 PALLETS PER CHARGE – CHARGING TIME: 8 -10 HOURS - HIGH FREQUENCY BATTERY CHARGER WITH LED-CONTROL & EXTERNAL PLUG - MECHANICAL SPOOL CARRIAGE STOPPING DEVICE (ANTI-FALLING) - LOAD HEIGHT SENSING PHOTOCELL - WRAPPING HEIGHT (PALLET INCLUDED) 2200 MM. - PHOTOCELL SENSING DELAY - BEEPER AND FLASHING LIGHT - EMERGENCY STOP WITH MOTORBRAKE - PUSH-BUTTONS FOR START, STOP, RESET & EMERGENCY STOP - PARAMETERS ADJUSTABLE FROM CONTROL PANEL: • BOTTOM PALLET WRAPPING ROUNDS FROM 1 TO 10 • TOP PALLET WRAPPING ROUNDS FROM 1 TO 10 • ROTATION SPEED UP TO 93 M/MIN • SPOOL CARRIAGE SPEED ADJUSTABLE FROM 0 A 3,4 M/MIN - CYCLES SELECTABLE FROM CONTROL PANEL: • DOUBLE CYCLE (UPWARD/DOWNWARD) • SINGLE CYCLE (ONLY UPWARD WITH MANUAL STOP-BUTTON) • PUSH-BUTTONS FOR MANUAL FUNCTIONS • 3+1 WRAPPING CYCLE SETTABLE - SPOOL CARRIAGE TYPE “FM” WITH MECHANICAL BRAKE. ON RETURN ROLLER - MANUALLY ADJUSTABLE FROM ELECTRICAL CABINET. STRETCH FILM SPOOL Ø 250 MM – H = 500mm Guarantee :12 months starting from delivery date. Excluding all electrical and wearing parts. Technical changes are reserved. Our general trading conditions apply.
