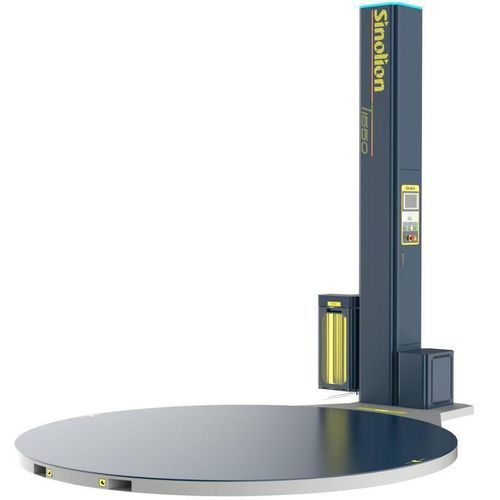

Turntable stretch wrapper T1650F-L
semi-automaticglassfor the food and beverage industry

Turntable stretch wrapper - T1650F-L - SHANDONG SINOLION MACHINERY CORP LTD - semi-automatic / glass / for the food and beverage industry
Turntable stretch wrapper - T1650F-L - SHANDONG SINOLION MACHINERY CORP LTD - semi-automatic / glass / for the food and beverage industry
Turntable stretch wrapper - T1650F-L - SHANDONG SINOLION MACHINERY CORP LTD - semi-automatic / glass / for the food and beverage industry - image - 2
Turntable stretch wrapper - T1650F-L - SHANDONG SINOLION MACHINERY CORP LTD - semi-automatic / glass / for the food and beverage industry - image - 3
Turntable stretch wrapper - T1650F-L - SHANDONG SINOLION MACHINERY CORP LTD - semi-automatic / glass / for the food and beverage industry - image - 4
Add to favorites
Compare this product
Go to the SHANDONG SINOLION MACHINERY CORP LTD website for more information

Characteristics

Type
turntable
Operating mode
semi-automatic
Product applications
pallet, for the food and beverage industry, box, package, for chemical products, building, glass
Other characteristics
high-speed
Height

2,200 mm, 2,800 mm, 3,200 mm
(87 in, 110 in, 126 in)

Width

1,650 mm
(65 in)

Length

2,745 mm
(108 in)

Machine weight

600 kg
(1,322.77 lb)

Maximum wrapping height

1,800 mm, 2,400 mm, 2,800 mm
(70.87 in, 94.49 in, 110.24 in)

Maximum pallet length

Max.: 1,200 mm
(47.24 in)

Min.: 500 mm
(19.69 in)

Maximum pallet width

Max.: 1,200 mm
(47.24 in)

Min.: 500 mm
(19.69 in)

Maximum pallet weight

2,000 kg
(4,409.25 lb)

Table diameter

1,650 mm, 2,000 mm
(64.96 in, 78.74 in)

Rotational speed

Max.: 12 rpm
(75 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Voltage

Max.: 415 V

Min.: 110 V

Power

1.5 kW
(2.04 hp)

Capacity

Max.: 40 p/h

Min.: 20 p/h

Description

Pallet Wrap Machine is mainly used for the packaging of big cargo or pallet that needs to be transport or stored. It is widely used in glass products, hardware, electronic appliances, paper-making, ceramics, chemicals, food & beverages, building materials and so on. This type of Stretching Wrap Machine packaging is high in packaging efficiency, anti-dust, anti-moisture and reduce the labor cost & material cost. Customized Film Wrap Machine available.
