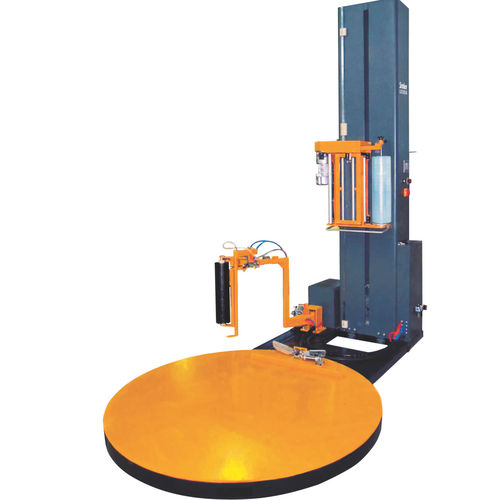

Rotary arm stretch wrapper T1650FZ | CE,UL,ISO
automaticpallet

rotary arm stretch wrapper
rotary arm stretch wrapper
rotary arm stretch wrapper
Add to favorites
Compare this product


Characteristics

Type
rotary arm
Operating mode
automatic
Product applications
pallet
Rotational speed

Max.: 12 rpm (75 rad.min-1)

Min.: 3 rpm (19 rad.min-1)

Height

2,800 cm (1,102 in)

Description

Control system HMI esay to operate separate top,bottom & up-down wrap count selectors Photo-eye pallet height sensor Reinforce wrap allow more wrap on same point Film tension adjustment on the HMI panel 3-12 rpm variable turntable speed by frenquency changer Turntable Reset function when wrap cycle finished Heavy duty chain drive Soft start/soft stop Film carriage Powered pre-stretch film with ratio 1: 2.5 Film feeding speed by seperate AC drive motor Heavy duty double chain carriage lift, calm and safety Other Hinged mast for easy handling Rear& front forlift inserts Option Ramp Top plate Packing heighgt: 2800mm Turntable diameter: 1800mm, 2000mm Turntbale capacity: 2500kg,3000kg Advantages 1 Durable using, our wrapping machines can be used for super 10 years which is approved by most of our customers 2 Easy operation, we improve the machine according to 20 years experience to make it more human friendly, safe and easy operation. 3 Film head with special  design:   Special design of pre-stretching film head with function of film stretching Max 300%.   With door for easy threading of film, also with film sensor to stop the machine if the film is broken .   Safety crush prevention device
