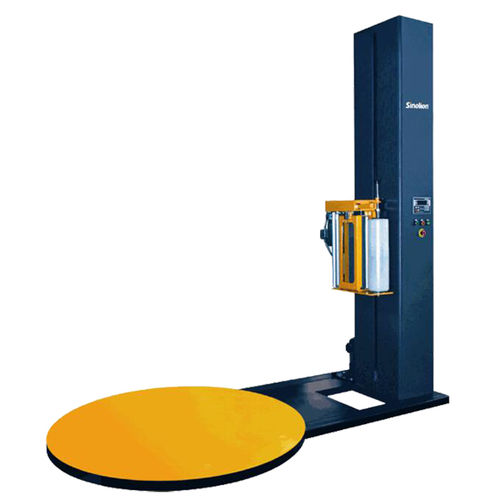

Turntable stretch wrapper T1650F | CE, UL, ISO
semi-automaticpallet

turntable stretch wrapper
turntable stretch wrapper
Add to favorites
Compare this product


Characteristics

Type
turntable
Operating mode
semi-automatic
Product applications
pallet
Rotational speed

Max.: 15 rpm (94 rad.min-1)

Min.: 0 rpm (0 rad.min-1)

Height

1,800 mm, 2,400 mm, 2,800 mm (71 in)

Width

Max.: 1,200 mm (47 in)

Min.: 500 mm (20 in)

Length

Max.: 1,200 mm (47 in)

Min.: 500 mm (20 in)

Description

Wrapping size: 500-1200mm(L) × 500-1200mm (w) Packaging height: Max. 2400mm (1800mm/2800mm available) Work efficiency: 20-40loads/H Turntable speed: 0-15RPM (adjustable, soft start & stop) Bearing: Max. 2000kgs Turntable size: D=1650mm, H=78mm Film carriage: Driven pre-stretch carriage, stretch ratio up to 300% Tower: double chain design. Lifting speed adjustable Control system: PLC Weight: 650kgs Dimension: 2475mm×1650mm×2860mm Power: turntable 0.75kw; film carriage 0.35kw; tower: 0.37kw 220V 50HZ 1Phase
