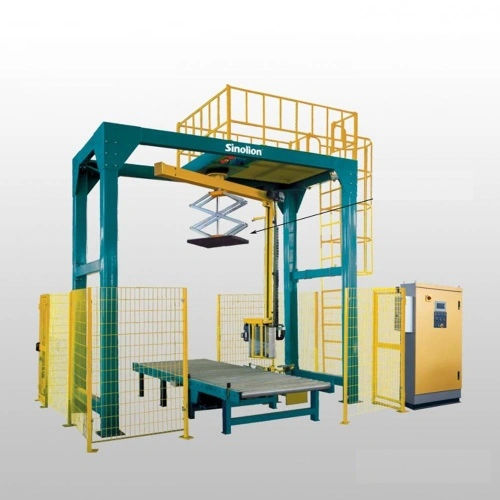

Rotary arm wrapping machine R1800FZ-PL-CS

fully-automaticfor the food and beverage industrypallet

Automatic rotary stretch film wrapper R1800FZ-PL-CS is a fully automatic stretch wrap system with top platen. It can be connected on-line with other automatic equipment. It is designed for tall stacked loads that are unstable or too heavy to rotate. It is suitable in the wrapping of beverage, food and other industries widely. It is easy to be set up and used. Pre-stretch carriage can save the Stretch Film and protect the environment. Control System •PLC control •Reinforce wrap allow more wrap on same location •Film Tension Control adjustment on the panel •0-35RPM arm variable speed by frequency changer •Separate variable carriage up/down speed •Cycle pause capability •Separate start, reset and emergency stop buttons •Manual carriage up/down switch •Turntable jog button •Flash light for machine in operation •Rotary arm stop by safety bumper and reflection photoeye sensing and obstacle in the rotating area Film Carriage • Powered pre-stretch system up to 300% to minimize film consumption (Prestretch ratio can be specially made according to your requirements). • Film delivery variable speed by separate AC Drive Motor. • Film dancer-bar with variable speed output. • Rotating Power slip ring provides power required for carriage drive on rotary arm. Auto film cut&clamp unit • Pneumatic clamp the film tail after wrapping. • Hot wire film cut. • Hot sealing then timely wind cooling.
