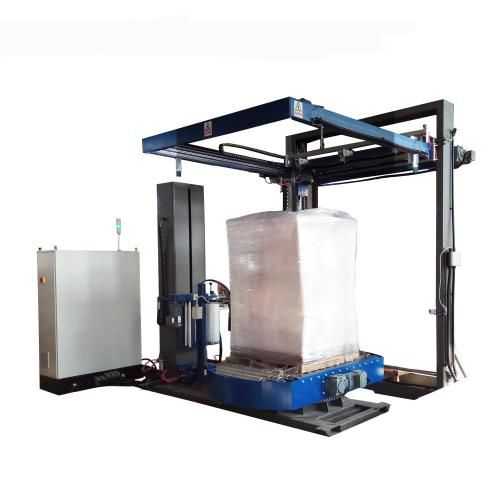

T1800FZ-PL-FM is on the base of pallet Wrapping Machine T1800FZ-PL , It is the new machine.
Control system (1 set)
• Independent control cabinet
• HMI operation panel, showing the working status and fault alarm
• Photo eye sensor that automatically senses the height of the load
• Strengthen the packaging, allowing more packaging layer at the same location
• Set the packaging layer and time on the screen
Movie car (1 set)
Pre-Stretch Film stent, pre-stretch ratio of 250%, stretch film speed adjustable;
Film tray lifting speed adjustable;
Open the film motor, easy to place film frequency adjustment film tension
Automotive patch clamp and cutting device (1 set)
After the packaging process is stopped, the film is cut and the film is clamped again
The hot wire cut into thin films, with hot temperature (electrical) automatic bonding film,
Film speed: 9.5m / min
Pull the membrane frame up and down speed: 4.5m / min
Pull the membrane frame up and down distance: to be determined
Film cutting methods: rodless cylinder, blade cutting film
