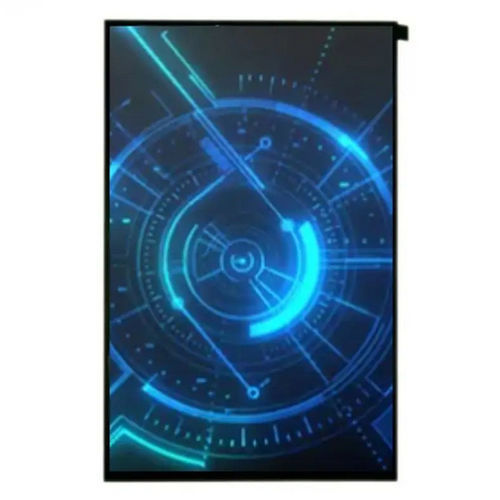

HG101WX025 | 10.1 inch TFT LCD | 800x1280 | IPS Display | Sunlight Readable | 1000 Brightness
The 10.1-inch high-brightness LCD display is a reliable and versatile solution for various industries that require high visibility and readability under bright and challenging lighting conditions.
With a brightness level of up to 1000 nits, it delivers clear and sharp images even in direct sunlight or other high ambient light environments.
It is specifically designed for applications such as outdoor kiosks, digital signage, transportation displays, and marine equipment.
Diagonal: 10.1 (inch)
Resolution: 800x1280 (pixel)
Display Type: IPS
Display Mode: Transmissive
Optimal View: ALL
Touch Screen: Custom
Module Dimensions: 143.00 x 228.60 x 2.65(mm) (W x H x D)
Active Area: 135.36 x 216.58 (mm) (W x H)
Luminance: 1000 (cd/m2) (customizable)
Interface: MIPI 40 PIN
Operating Temperature: -20~+60 (°C)
Storage Temperature: -30~+70 (°C)
