Product Summary

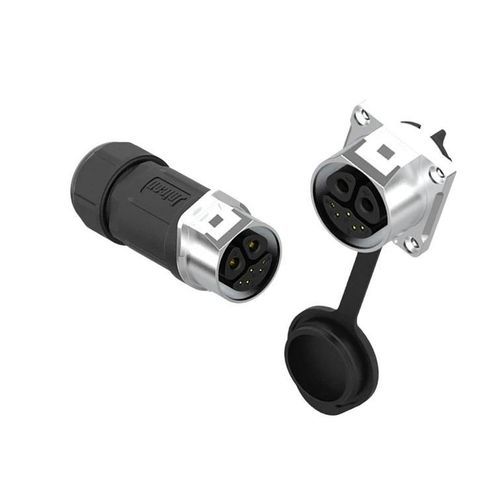

Hybrid waterproof connector combining 50A power and 5A signal contacts in a compact, IP67-rated housing for outdoor and industrial smart lighting and control systems.

Overview

• Hybrid power and signal: 50A power pins (3.6 mm) plus 5A signal pins (1.0 mm) in a single connector to simplify wiring and save space.
• QuickLock mechanism: tool-free mating with audible click and anti-vibration locking for reliable retention.
• IP67 waterproofing: sealed against dust and temporary immersion for outdoor and harsh environments.
• Smart lighting ready: suitable for LED modules, lighting controls and hybrid power/signal architectures.
• Global certifications: ISO9001, CE, UL, RoHS; manufactured in IATF/ISO-capable facilities.

Product Specifications (table)

• Pin number: 2 Pin | 3 Pin | 4 Pin | 5 Pin | 2+5 Pin
• Pin diameter × number: 3.6 mm | 3.6 mm | 2.7 mm | 2.7 mm | 3.6 + 1.0 mm
• Current rating: 50A | 50A | 30A | 30A | 50A + 5A
• Voltage rating: 300V | 300V | 300V | 300V | 300V + 60V
• Withstanding voltage: 2000V | 2000V | 1500V | 1500V | ~1500V
• Cable gauge: 1.5 mm²–6 mm² (16–9 AWG) | 1.5 mm²–6 mm² (16–9 AWG) | 1.0 mm²–4 mm² (18–12 AWG) | 1.0 mm²–4 mm² (18–12 AWG) | 1.0 mm²–4 mm² (18–12 AWG)
• Maximum diameter range: MAX Φ16.0 mm
• Protection level: IP67
• Connecting mode: QuickLock (tool-free)
• Flame rating: UL94‑V0
• Operating temperature: -40℃ – 105℃
• Certification: ISO9001, CE, UL, RoHS

Technical characteristics

• Series / Model: MJ24 (2+5 pin hybrid variant).
• Power contacts: 50A power pins (3.6 mm diameter), rated for 50A in the power portion.
• Signal contacts: 5A signal pins (1.0 mm diameter), rated for 5A in the signal portion.
• Combined rating (2+5 pin): 50A (power) + 5A (signal).
• Voltage rating: 300V for power contacts; additional 60V for signal (reported as 300V + 60V for hybrid variant).
• Withstanding voltage: approximately 1500V for the 2+5 pin variant.
• Cable gauge compatibility: typically 1.0 mm²–4 mm² (18–12 AWG) for the hybrid variant.
• Maximum cable diameter: MAX Φ16.0 mm.
• Ingress protection: IP67 (dust-tight and temporary immersion protection).
• Locking mechanism: QuickLock tool-free lock with audible click and anti-vibration retention.
• Housing material & flame rating: UL94‑V0 flame-retardant housing.
• Operating temperature range: -40℃ to +105℃.
• Mating durability: designed for high mating cycles (500+ mating cycles reference for series).
• Certifications: ISO9001, CE, UL, RoHS (series-level certifications reported).
