Hybrid connector

overmoldedpush-to-lockM12

Product Overview

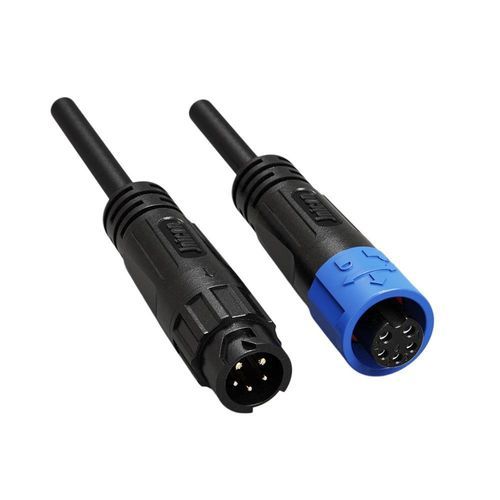

7A+2A hybrid push-locking waterproof connector pre-molded with cable, combining power and signal in one M12 housing for sensors and control systems.

Key Benefits

• Power & Signal Hybrid – 2 power pins (7A/125V, Φ1.2mm) and 3 signal pins (2A/60V, Φ1.0mm) in a single M12 connector to simplify wiring for sensor networks and control systems.
• Push-Locking Mechanism – Tool-free quick connect and disconnect for rapid installation.
• IP67 Waterproof – Overmolded with cable for superior water and dust protection, eliminating entry points.
• Ready-to-Use Solution – Pre-molded cable assembly eliminates field termination, ensuring consistent and reliable connections.
• Compact M12 Design – Space-saving 5-pin configuration ideal for sensor networks and fieldbus systems.
• Global Certifications – UL, TUV, CE and RoHS certifications; manufactured under ISO9001 processes.

Additional Notes
Pre-molded assembly reduces field wiring errors and signal noise by integrating power and data lines within one sealed M12 housing. Push-locking mating enables quick maintenance and replacement without special tools.

Technical specifications

• Model type: M12 2+3 Pin hybrid (power + signal)
• Pin number: 5 Pin (2 power + 3 signal)
• Pin diameter x number: 1.2mm (power) + 1.0mm (signal)
• Current rating: 7A (power pins) + 2A (signal pins)
• Voltage rating: 125V (power) + 60V (signal)
• Withstanding voltage (insulation): 1000V (for 5-pin hybrid configuration)
• Cable gauge supported: 0.3mm²–1.0mm² (24–18 AWG)
• Diameter range (cable outer): MAX φ8.5mm
• Protection level: IP67 (overmolded cable, waterproof and dustproof)
• Connecting mode: Push Locking (tool-free)
• Flammability / combustion level: UL94-V0
• Operating temperature: -40°C – 105°C
• Certifications: ISO9001, CE, UL, RoHS (TUV also referenced)
