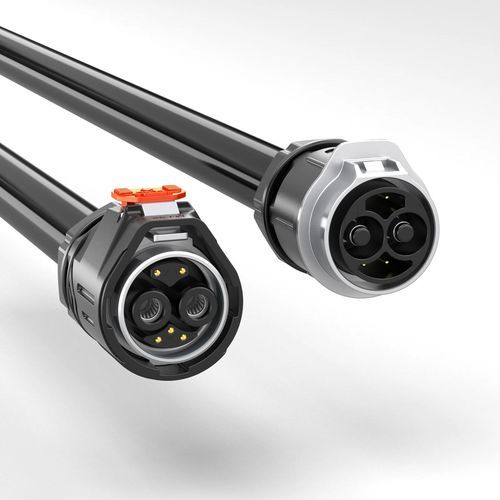

The JNICON MJ32 hybrid waterproof connector integrates two high-current power contacts and five signal contacts in a compact IP67-rated housing. It is designed for battery management systems (BMS) and industrial control wiring where separate power and multi-signal transmission are required. Validate mating-pair drawings, cable fit and electrical ratings for each application before approval.

Key features

• 120A power + 10A signal – Hybrid 2+5 pin configuration with 6.0 mm power contacts and 1.5 mm gold-plated signal contacts.
• QuickLock mechanism – Tool-free, audible locking with anti-vibration retention for secure mating.
• IP67 ingress protection – Sealed interface when correctly mated and installed; performance depends on assembly and cable entry.
• Application – Intended for BMS, hybrid signal/power distribution and industrial control systems.
• Certifications – Typical supply with ISO9001, CE, UL, RoHS; confirm certificates for the selected model and configuration.

Important — confirm the 2+5 pin configuration before ordering

• The 120A rating applies only to the power contact group; signal contacts are rated up to 10A. Do not treat all seven contacts as equivalent power circuits.
• Verify mating-pair drawings, pin assignments and connector pair selection for your wiring design.
• Check continuous and peak load, circuit voltage, ambient temperature, conductor cross-section, cable outside diameter and panel clearance.
• Validate temperature rise and sealing of the assembled cable under your specific application conditions.

Product specifications

• Series / Model: MJ32
• Configuration: 2 power pins + 5 signal pins (hybrid)
• Power contact size: 6.0 mm diameter
• Signal contact size: 1.5 mm, gold-plated
• Current rating: power up to 120A; signal up to 10A
• Voltage rating: power up to 600V; signal up to 60V (combined spec)
• Withstanding voltage: up to 3000V (product dependent)
• Cable gauge compatibility: power 4 mm²–25 mm² (10–3 AWG); signal 1.0 mm²–6 mm² (18–9 AWG)
• Max cable bundle OD: MAX Φ25.0 mm
• Ingress protection: IP67 (when mated and installed per instructions)
• Connecting mode: QuickLock (tool-free)
• Flammability: UL94-V0 housing
• Operating temperature: -40℃ to 105℃
• Typical certifications: ISO9001, CE, UL, RoHS
