Product Overview

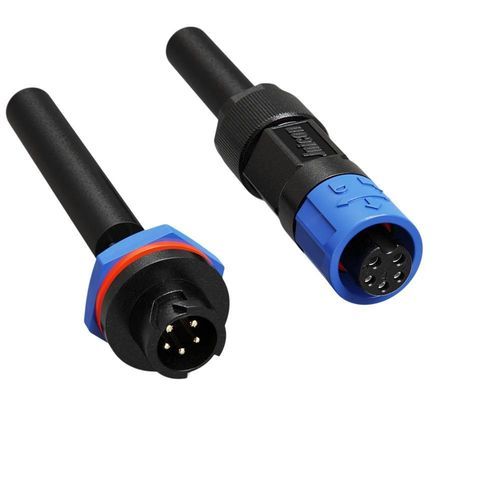

7A+2A hybrid push-locking waterproof M12 circular connector combining two power pins and three signal pins in a compact housing. Designed to simplify wiring and provide reliable power and signal transmission for smart meters, access control and IoT devices.

Key Features

• Power & Signal Hybrid – 2 power pins (7A/125V, Φ1.2mm) and 3 signal pins (2A/60V, Φ1.0mm) integrated in one connector to reduce cable count and simplify installation.
• Smart Device Ready – Suitable for smart meters, smart locks, intelligent lighting, IoT sensor nodes and similar devices requiring combined power and control lines.
• Push-Locking Mechanism – Tool-free push-to-lock mating with secure retention for fast field installation and maintenance.
• IP67 Waterproof & Dustproof – Sealed against dust and temporary immersion; higher IP ratings (e.g., IP69K) available on request for washdown environments.
• Compact M12 Design – Standard M12 footprint for space-constrained enclosures.
• Proven Reliability – UL94 V-0 flame-retardant housing, copper-alloy contacts, wide operating temperature (-40°C to 105°C) and rated for 500+ mating cycles.
• Global Certifications – Manufactured in ISO9001 facilities and compliant with CE, UL and RoHS standards.

Applications

• Smart meters and energy metering
• Smart door locks and access control systems
• Intelligent lighting and outdoor LED installations
• IoT sensor nodes and environmental monitoring devices
• Industrial automation sensors and actuators

Product Table – Values for the 2+3 (5-pin hybrid) configuration
Pin number: 5 Pin
Pin diameter X number: 1.2+1.0mm
Current rating: 7A+2A
Voltage rating: 125V+60V
Withstanding voltage: 1000V
Cable Gauge: 0.3mm²-1.0mm² (24-18AWG)
Diameter Range: MAX φ8.5mm
Protection Level: IP67
Connecting mode: Push Locking
Prevent the combustion level: UL94-V0
Operating temperature: -40℃ – 105℃
Certification: ISO9001, CE, UL, ROHS

Additional Technical Notes

• Housing: UL94 V-0 flame-retardant engineering plastic for electrical safety.
• Contacts: Copper alloy contacts designed for stable conductivity and long service life.
• Mating durability: Validated for 500+ mating cycles to support repeated field connections.
• Optional custom features: IP69K and specific cable seal variants available for harsh or washdown environments (custom order).

Technical Specifications

• Series: M12
• Designation: 2+3 pin hybrid (power + signal)
• Current: Power pins 7A / Signal pins 2A
• Rated voltage: Power 125V / Signal 60V
• Ingress protection: IP67 (standard)
• Housing material: Engineering plastic, UL94 V-0
• Contact material: Copper alloy
• Temperature range: -40℃ to 105℃
• Acceptable cable: 0.3mm² to 1.0mm² (24-18 AWG)
• Mating durability: 500+ cycles
• Standards & certifications: ISO9001, CE, UL, RoHS
