Hybrid connector

dataelectrical power supplywire-to-wire

Product Overview

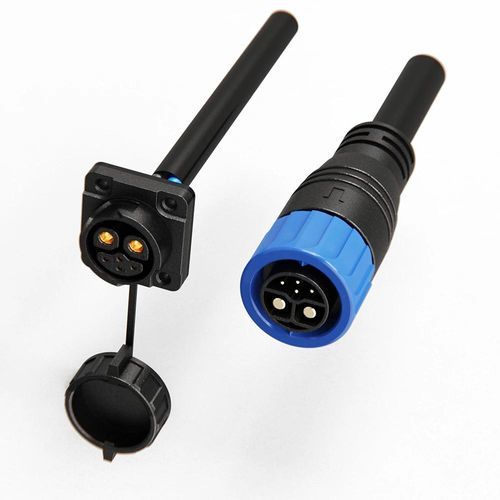

50A+5A hybrid push-locking waterproof connector with IP67 rating, combining power and signal transmission for industrial automation and energy systems. Designed to simplify wiring by integrating high-current power contacts and signal contacts in a single M23 housing, while providing robust sealing and vibration-resistant mating.

Key Features

• High-Current Hybrid Design – 50A power contacts (φ3.6mm) and 5A signal contacts (φ1.0mm) in one 6-pin connector, simplifying wiring and saving panel space.
• Push-Locking Mechanism – Tool-free quick connect and disconnect with self-locking design, providing secure and vibration-resistant connections.
• IP67 Waterproof & Dustproof – Fully sealed against water and dust for reliable operation in harsh industrial and outdoor environments.
• Wide Cable Compatibility – Supports 0.3mm²–6mm² (24–9 AWG) cables with max φ16mm diameter, flexible for various installations.
• High-Performance Materials – UL94 V-0 flame-retardant engineering plastic housing and copper alloy contacts with silver plating for excellent conductivity.
• Global Certifications – UL, TUV, CE, and RoHS certified.

Product Specifications (table)
Product Details — Specification 1 — Specification 2 — Specification 3
Pin number — 6（2+4） Pin — 8（2+1+5） Pin — 15（2+13） Pin
Pin diameter X number — φ3.6+φ1.0 — φ3.6+φ2.0+φ1.0 — φ2.4+φ1.0
Current rating — 50A+5A — 50A+15A+5A — 20A+5A
Voltage rating — 300V+60V — 300V+125V+60V — 125V+60V
Withstanding voltage — 5000V — 3000V — 3000V
Cable Gauge — 0.3mm²–6mm²(24–9AWG) — 0.3mm²–6mm²(24–9AWG) — 0.3mm²–6mm²(24–9AWG)
Diameter Range — MAX φ16mm — MAX φ16mm — MAX φ16mm
Protection Level — IP67 — IP67 — IP67
Connecting mode — Push Locking — Push Locking — Push Locking
Prevent the combustion level — UL94-V0 — UL94-V0 — UL94-V0
Operating temperature — -40℃ – 105℃ — -40℃ – 105℃ — -40℃ – 105℃
Certification — ISO9001, CE, UL, ROHS — ISO9001, CE, UL, ROHS — ISO9001, CE, UL, ROHS

Technical Specifications

• Series / Model: M23 series (6-pin hybrid variant)
• Pin configuration: 6 pins (2 power + 4 signal)
• Power contact size: φ3.6 mm (power contacts)
• Signal contact size: φ1.0 mm (signal contacts)
• Current rating: 50A (power) + 5A (signal)
• Voltage rating: 300V (power) + 60V (signal)
• Withstanding voltage: 5000V
• Cable gauge supported: 0.3 mm² – 6 mm² (24 – 9 AWG)
• Max cable diameter: φ16 mm
• Protection: IP67 (waterproof and dustproof)
• Connection method: Push-locking (tool-free, self-locking)
• Housing material: UL94 V-0 flame-retardant engineering plastic
• Contact material/finish: Copper alloy contacts with silver plating
• Operating temperature: -40°C to +105°C
• Mating durability: rated for 500+ mating cycles
• Certifications: ISO9001, CE, UL, RoHS, TUV (factory-level UL/TUV noted)
