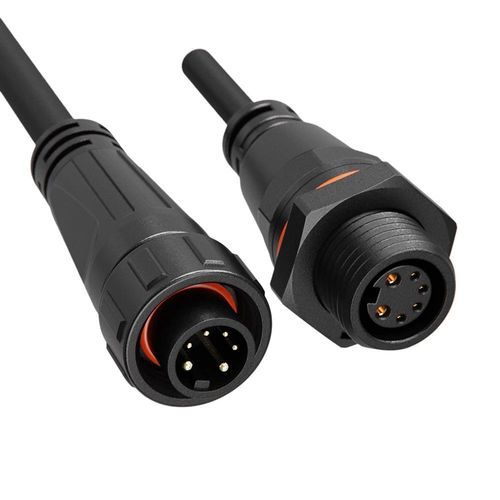

10A+5A M16 hybrid waterproof connector combining power and signal contacts in one screw-locking housing; available field-installable or molded with cable.

Product Overview

• Power & Signal Hybrid – 2 power pins (10A/125V, Φ1.5mm) and 4 signal pins (5A/60V, Φ1.0mm) in a single M16 connector to simplify wiring and save panel space.
• Screw Locking Mechanism – Threaded coupling provides secure mating with anti-vibration design for industrial applications.
• IP68 Waterproof – Sealed against dust and prolonged immersion; IP69K option available for high-pressure washdown.
• Compact M16 Form Factor – Mixed contact configuration for space-constrained installations and complex systems.
• Assembly Options – Available as field-installable (solder/crimp) or molded-with-cable assemblies.
• Certifications – ISO9001, CE, UL, RoHS, with TUV listed variants where applicable.

Key Features & Advantages

• IP68 sealing ensures reliable protection in harsh industrial environments; IP69K optional for aggressive washdown.
• Operating temperature range -40°C to +105°C (some variants up to +125°C for energy-storage applications).
• UL94-V0 flame-retardant housing for improved fire safety and impact resistance.
• Durable design rated for 500+ mating cycles to support frequent connect/disconnect operations.

Specifications Table
Product Details | Specification 1 | Specification 2 | Specification 3 | Specification 4 | Specification 5 | Specification 6 | Specification 7
Pin number | 2 Pin | 3 Pin | 4 Pin | 5 Pin | 2+4 Pin | 7 Pin | 8 Pin
Pin diameter X number | 1.5mm | 1.5mm | 1.5mm | 1.0mm | 1.5+1.0mm | 1.0mm | 1.0mm
Current rating | 10A | 10A | 10A | 8A | 10A+5A | 5A | 5A
Voltage rating | 300V | 300V | 125V | 125V | 125V+60V | 60V | 60V
Withstanding voltage | 1500V | 1500V | 1500V | 1500V | 500V | 500V | 500V
Cable Gauge | 0.5mm²-1.0mm² (20-18AWG) | 0.5mm²-1.0mm² (20-18AWG) | 0.5mm²-1.0mm² (20-18AWG) | 0.75+0.5mm² (18+20AWG) | 0.75+0.5mm² (18+20AWG) | 0.3mm²-0.5mm² (24-20AWG) | 0.3mm²-0.5mm² (24-20AWG)
Diameter Range | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm
Protection Level | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68
Connecting mode | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking
Prevent the combustion level | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0
Operating temperature | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃
Certification | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS

Technical specifications

• Model / Form factor: M16 housing, hybrid 2 power + 4 signal contacts (2+4 Pin).
• Power contacts: 2 × Φ1.5mm, rated 10A each (125V rating).
• Signal contacts: 4 × Φ1.0mm, rated 5A each (60V rating).
• Cable compatibility: hybrid combinations (example: 0.75+0.5mm²; 20–18 AWG for power, 24–20 AWG for signal).
• Withstanding voltage: up to 1500V for many pin counts; hybrid variant shows 500V per table.
• Ingress protection: IP68 (protection against dust and prolonged immersion); IP69K optional.
• Coupling: screw-locking (threaded) with anti-vibration design.
• Housing material: high-strength flame-retardant polymer, UL94-V0.
• Operating temperature: -40°C to +105°C (some series up to +125°C).
• Mating durability: 500+ mating cycles.
• Certifications: ISO9001, CE, UL, RoHS, TUV where applicable.
