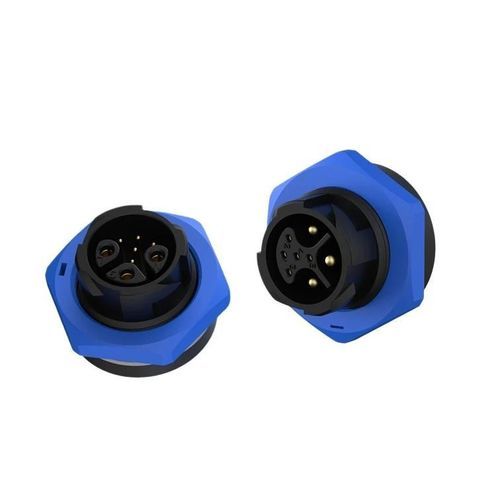

Hybrid connector

wire-to-wirepush-to-lockM19

Product Summary
15A+5A hybrid push-locking waterproof connector combining power and multi-signal in one M19 housing for industrial control systems.

Key Features

• Power & Multi-Signal Hybrid – 3 power pins (15A/300V, Φ2.0mm) and 5 signal pins (5A/60V, Φ0.8mm) in one connector, simplifying complex system wiring.
• Push-Locking Mechanism – Tool-free quick connect and disconnect for fast installation.
• IP67 Waterproof – Fully sealed against water and dust, reliable in harsh industrial environments. IP69K available as an optional custom feature for demanding washdown applications.
• Compact Design – 8-pin configuration in M19 housing maximizes functionality while saving panel space.
• Global Certifications – ISO9001, CE, UL, RoHS (TUV cited for series).

Advantages
High-reliability waterproof and dustproof protection (IP67; optional IP68/IP69K for select models). Wide operating temperature range: -40℃ – 105℃ (certain series up to +125℃). High-strength, UL94-V0 flame-retardant housing for self-extinguishing properties and impact resistance. Rated for 500+ mating cycles to ensure long-term connector durability and stable contact performance.

Specifications (3+5 Pin)
Pin number: 3+5 Pin
Pin diameter × number: 2.0 + 0.8 mm
Current rating: 15A (power) + 5A (signal)
Voltage rating: 300V (power) + 60V (signal)
Withstanding voltage: 1000V
Cable gauge: 0.5 mm² ~ 1.5 mm² (20 ~ 16 AWG)
Diameter range: φ 4.5 – φ 11 mm
Protection level: IP67
Connecting mode: Push Locking (tool-free)
Flammability rating: UL94-V0
Operating temperature: -40℃ – 105℃
Certifications: ISO9001, CE, UL, RoHS

Additional Technical Notes
• 3 power pins (Φ2.0mm) carry higher current; 5 signal pins (Φ0.8mm) support multi-signal lines.
• Designed to simplify bulky machinery wiring and reduce signal noise by integrating power and signal in a single M19 housing.
