Hybrid connector
combinedcircularbayonet

Hybrid connector - Shenzhen Jnicon Technology Co., Ltd. - combined / circular / bayonet
Hybrid connector - Shenzhen Jnicon Technology Co., Ltd. - combined / circular / bayonet

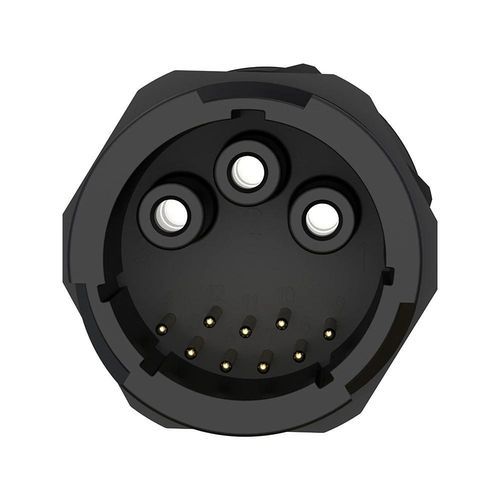

Hybrid connector - Shenzhen Jnicon Technology Co., Ltd. - combined / circular / bayonet - image - 2
Hybrid connector - Shenzhen Jnicon Technology Co., Ltd. - combined / circular / bayonet - image - 3
Hybrid connector - Shenzhen Jnicon Technology Co., Ltd. - combined / circular / bayonet - image - 4
Hybrid connector - Shenzhen Jnicon Technology Co., Ltd. - combined / circular / bayonet - image - 5
Hybrid connector - Shenzhen Jnicon Technology Co., Ltd. - combined / circular / bayonet - image - 6
Add to favorites
Compare this product

Characteristics

Type
hybrid, combined
Shape
circular
Connection type
bayonet
Size
M40
Electrical characteristics
3 pin, with 2 pins, 4 pin, 2+4 pins, 5 pin, 3+9 Pin
Material
plastic
Protection class
IP67, IP68, IP69K
Norms
RoHS, cULus
Other characteristics
flame-retardant, for numerous mating cycles
Primary current

10 A, 50 A, 120 A, 150 A

Voltage

60 V, 300 V, 600 V, 1,500 V

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 105 °C
(221 °F)

Description

Product summary
50A+10A hybrid bayonet-lock waterproof connector M40 for industrial control systems, combining power and multi-signal contacts in a compact unit.

Product overview
  • Hybrid power and signal – integrated 3×50A power pins (3.6 mm) and 9×10A signal pins (1.5 mm) in one housing.
  • Bayonet lock – quarter-turn quick connect/disconnect with anti-vibration engagement for reliable mechanical coupling.
  • Water and dust protection – IP67 standard; IP68 and IP69K available on request for harsher environments.
  • Control system compatibility – suitable for PLC networks, automation feedback lines and panel connections.
  • Certifications – ISO9001, CE, UL, RoHS, TUV.

Key specifications
  • Series / Model: M40
  • Configuration: 3+9 pin (power + signal)
  • Power pins: 3 × 3.6 mm, rated 50A
  • Signal pins: 9 × 1.5 mm, rated 10A
  • Current rating (3+9): 50A + 10A
  • Voltage rating (3+9): 300V + 60V
  • Withstand voltage: 1500V
  • Cable gauge: power 1.0–6 mm² (18–9 AWG); signal 0.3–0.75 mm² (24–18 AWG)
  • Maximum outer diameter: MAX φ25.0 mm
  • Protection level: IP67 (standard); IP68/IP69K optional
  • Connecting mode: Bayonet lock (quarter-turn)
  • Flame retardant: UL94 V-0 housing
  • Operating temperature: -40°C to +105°C
  • Durability: ≥500 mating cycles

Advantages and technical highlights
  • Reliable waterproof and dustproof sealing for outdoor and industrial use.
  • Wide operating temperature range; optional high-temperature variants available for specific applications.
  • High-strength, flame-retardant engineering-plastic housing (UL94 V-0).
  • Robust mechanical design with impact resistance and anti-vibration bayonet lock.
  • Designed for long-term industrial deployment with global certifications.

Other Shenzhen Jnicon Technology Co., Ltd. products

Hybrid Connectors
