Overview

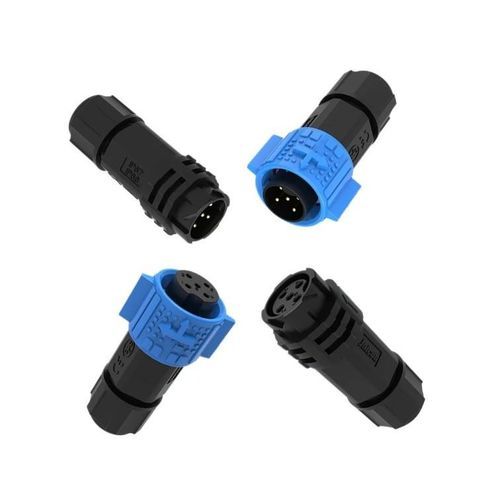

15A 5‑pin waterproof circular connector (M19) with push‑locking mechanism and IP67 rating, designed for industrial power, outdoor and marine applications.

Key Features

• 15A multi‑pin power: Φ2.0mm copper‑alloy contacts deliver 15A/300V in the 5‑pin configuration.
• Push‑locking mechanism: Tool‑free quick connect/disconnect with anti‑vibration locking.
• IP67 waterproofing: Fully sealed against dust and temporary immersion—suitable for outdoor and marine environments.
• Cable flexibility: Supports 0.5mm²–1.5mm² (20–16 AWG) cable sizes.
• Global certifications: ISO9001, CE, UL, TUV and RoHS across the product line.

Specifications (full variants table)
Product Details | 2 Pin | 3 Pin | 4 Pin | 5 Pin | 3+5 Pin | 9 Pin
Pin number | 2 Pin | 3 Pin | 4 Pin | 5 Pin | 3+5 Pin | 9 Pin
Pin diameter X number | 2.4mm | 2.4mm | 2.0mm | 2.0+0.8mm | 2.0+0.8mm | 1.0mm
Current rating | 20A | 20A | 15A | 15A+5A | 15A+5A | 5A
Voltage rating | 300V | 300V | 300V | 300V+60V | 300V+60V | 60V
Withstanding voltage | 1500V | 1500V | 1000V | 1000V | 1000V | 500V
Cable Gauge | 1.5mm²~2.5mm² (16~12 AWG) | 1.5mm²~2.5mm² (16~12 AWG) | 1.5mm²~2.5mm² (16~12 AWG) | 0.5mm²~1.5mm² (20~16 AWG) | 0.5mm²~1.5mm² (20~16 AWG) | 0.3mm²~0.5mm² (24+20 AWG)
Diameter Range | φ 4.5–φ11mm | φ 4.5–φ11mm | φ 4.5–φ11mm | φ 4.5–φ11mm | φ 4.5–φ11mm | φ 4.5–φ11mm
Protection Level | IP67 | IP67 | IP67 | IP67 | IP67 | IP67
Connecting mode | Push Locking | Push Locking | Push Locking | Push Locking | Push Locking | Push Locking
Prevent the combustion level | UL94‑V0 | UL94‑V0 | UL94‑V0 | UL94‑V0 | UL94‑V0 | UL94‑V0
Operating temperature | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C
Certification | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS

Product Details
The M19 5‑pin model uses Φ2.0mm copper‑alloy power contacts delivering 15A together with additional smaller signal contacts in hybrid configurations. The push‑locking, anti‑vibration design provides reliable mating retention. The housing is fully sealed to IP67, rated UL94‑V0 for flame retardancy, and operates across a wide temperature range (-40°C to 105°C). Certified to ISO9001, CE, UL, TUV and RoHS.

Technical Specifications

• Model / Series: M19
• Contact type & size: Φ2.0mm copper‑alloy power contacts; 0.8mm signal contacts where applicable
• Current rating: 15A (power) and 5A (signal) — 15A+5A for 5‑pin hybrid variant
• Voltage rating: 300V (power) + 60V (signal) for the hybrid 5‑pin
• Withstanding voltage: 1000V
• Cable gauge supported: 0.5mm²–1.5mm² (20–16 AWG)
• Cable outer diameter: φ 4.5 – φ 11 mm
• Protection / Ingress: IP67 (dust‑tight and temporarily immersible)
• Connecting mode: Push‑locking (tool‑free, anti‑vibration)
• Operating temperature: -40°C to 105°C
• Housing flame rating: UL94‑V0
• Typical mating cycles: rated for 500+ mating cycles
• Certifications: ISO9001, CE, UL, TUV, RoHS
