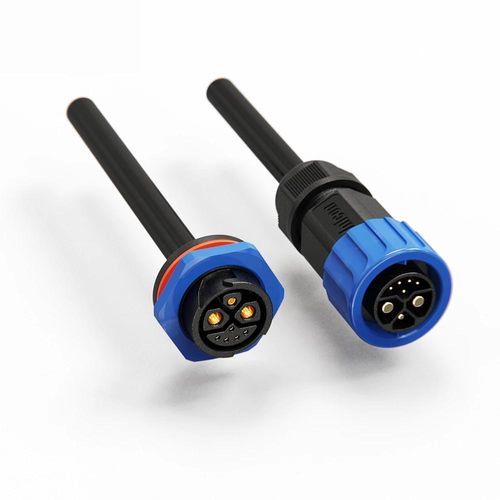

Hybrid connector

wire-to-wirecircularpush-to-lock

Product Overview

• Multi-Power & Signal Hybrid – Three contact sizes in one 8-pin connector: 50A power (φ3.6mm), 15A power (φ2.0mm), and 5A signal (φ1.0mm), supporting 300V+125V+60V multi-voltage transmission.
• Push-Locking Mechanism – Tool-free quick connect and disconnect with self-locking design, ideal for frequent mating cycles.
• IP67 Waterproof & Dustproof – Fully sealed design for reliable performance in wet, dusty, and outdoor environments.
• Versatile Cable Compatibility – Accepts 0.3mm²–6mm² (24–9 AWG) cables with max φ16mm outer diameter.
• Built to Last – UL94 V-0 flame-retardant housing and copper-alloy contacts; wide operating temperature range for industrial durability.
• Global Certifications – ISO9001, CE, UL, RoHS certified.

Specifications
Product Details | Specification 1 | Specification 2 | Specification 3
Pin number | 6（2+4） Pin | 8（2+1+5） Pin | 15（2+13） Pin
Pin diameter X number | φ3.6+φ1.0 | φ3.6+φ2.0+φ1.0 | φ2.4+φ1.0
Current rating | 50A+5A | 50A+15A+5A | 20A+5A
Voltage rating | 300V+60V | 300V+125V+60V | 125V+60V
Withstanding voltage | 5000V | 3000V | 3000V
Cable Gauge | 0.3mm²–6mm²(24–9AWG) | 0.3mm²–6mm²(24–9AWG) | 0.3mm²–6mm²(24–9AWG)
Diameter Range | MAX φ16mm | MAX φ16mm | MAX φ16mm
Protection Level | IP67 | IP67 | IP67
Connecting mode | Push Locking | Push Locking | Push Locking
Prevent the combustion level | UL94-V0 | UL94-V0 | UL94-V0
Operating temperature | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃
Certification | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS

Features / Technical specifications

• Series: M23 series
• Commercial designation: 8-pin hybrid (2+1+5) configuration
• Contact diameters: φ3.6mm (power), φ2.0mm (power), φ1.0mm (signal)
• Current rating: 50A (main power) + 15A (secondary power) + 5A (signal)
• Voltage rating: 300V + 125V + 60V (multi-voltage support)
• Withstanding voltage: 3000V (for 8-pin configuration)
• Cable gauge supported: 0.3mm² – 6mm² (24–9 AWG)
• Maximum cable diameter: MAX φ16mm
• Ingress protection: IP67 (waterproof & dustproof)
• Connection method: Push-locking (self-locking, tool-free)
• Housing material / flame rating: UL94 V-0 flame-retardant
• Contact material: Copper alloy
• Operating temperature range: -40℃ to 105℃
• Typical mating cycles: designed for 500+ mating cycles
• Certifications: ISO9001, CE, UL, RoHS
