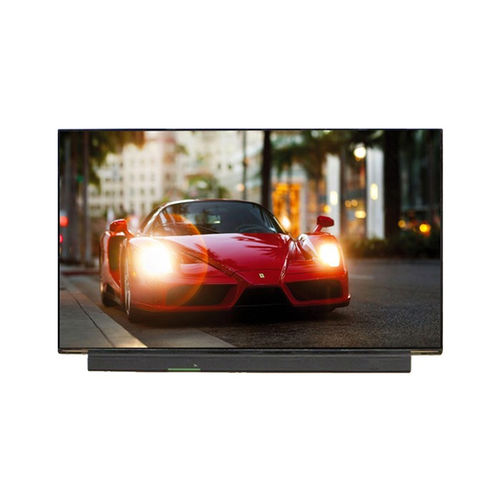

TFT display module YXF60UBA63.A

AMOLEDcolor3840 x 2160

Overview
The YXF60UBA63A is a 15.6-inch LTPS TFT AMOLED display module designed for notebook computers and professional embedded applications requiring ultra-high resolution, wide color gamut and accurate optical performance. AMOLED's self-emissive pixels deliver true blacks, high contrast, fast response and improved power efficiency compared with conventional LCDs.

Key features

• Display size: 15.6 inch
• Resolution: 3840 × 2160 (UHD)
• Display technology: LTPS TFT AMOLED
• Viewing direction: All directions
• Driver IC: MTK timing controller (T-CON) + RM98110 source driver IC
• Interface: eDP 1.4b
• Pixel arrangement: Real RGB
• Display colors: RGB 10-bit
• Typical brightness: 400 cd/m²; HDR peak brightness: 550 cd/m²
• Wide color gamut: 98% Adobe RGB, 98% DCI-P3
• Contrast ratio: 100,000:1
• Response time: 1 ms; Refresh rate: 60 Hz

Applications
Recommended for premium notebooks and creator laptops, industrial workstations, medical imaging equipment and professional embedded systems where ultra-high resolution, color accuracy and fast response are required.

Basic Specifications
Display Size: 15.6 inch
Display Technology: LTPS TFT AMOLED Display
Resolution: 3840 × 2160 (UHD)
Active Area: 344.2176 × 193.6224 mm
Outline Dimensions: 348.22 × 215.57 × 2.19 mm
Driver IC: MTK T-CON + RM98110 Source IC
Pixel Arrangement: Real RGB
Display Colors: RGB 10-bit
Interface: eDP 1.4b
Typical Brightness: 400 cd/m²
HDR Peak Brightness: 550 cd/m²
Contrast Ratio: 100,000:1
Adobe RGB: 98%
DCI-P3: 98%
Response Time: 1 ms
Refresh Rate: 60 Hz
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C

Mechanical Drawing
Mechanical drawing and module outline are provided for mechanical integration and mounting; consult the drawing for outline dimensions and mounting details.

Technical specifications

• Model: YXF60UBA63A
• Display type: AMOLED (LTPS TFT AMOLED architecture)
• Resolution: Ultra HD 3840 × 2160
• Interface: eDP 1.4b (high-speed)
• Driver solution: MTK timing controller + RM98110 source IC
• Color depth: 10-bit RGB
• Brightness: 400 cd/m² typical, 550 cd/m² HDR peak
• Color gamut: 98% Adobe RGB, 98% DCI-P3
• Contrast ratio: 100,000:1
• Response time: 1 ms
• Refresh rate: 60 Hz
• Active area: 344.2176 × 193.6224 mm
• Outline dimensions: 348.22 × 215.57 × 2.19 mm
• Operating temperature range: -20°C to +70°C
• Storage temperature range: -40°C to +85°C
