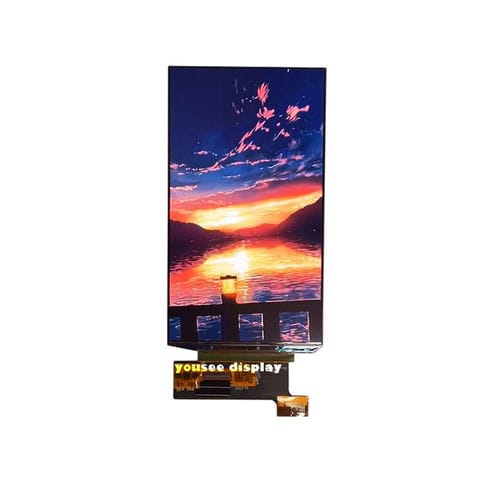

OLED display module YX544HC01AMOLEDmultitouch screencolor
Add to favorites
Compare this product
Characteristics
- Screen type
- OLED, AMOLED, multitouch screen
- Type
- color
- Format
- 1080 x 1920, full HD
- Screen size
- 5.44"
- Applications
- industrial, for medical equipment, medical, for marine applications
- Interface
- MIPI
- Structure
- compact, ultra-thin
- Configuration/mounting
- portable
- Protection level
- rugged
- Operating system
- Linux, Android
- Other characteristics
- wide-viewing angle, custom, high-contrast, with built-in electronics, with controller
- Length
69.74 mm
(2.746 in)- Width
126.6 mm
(4.9843 in)- Thickness
0.82 mm
(0.032 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Product Overview
The YX544HC01 is a premium 5.44 inch AMOLED display module designed for applications requiring excellent image quality, compact mechanical dimensions, and responsive on-cell capacitive touch. It features self-emissive pixels for true black levels and ultra-high contrast, integrated driver and touch controllers for easy system integration, and a slim profile suitable for portable and intelligent devices.
Basic Specifications
Display Size : 5.44 inch
Display Technology : AMOLED Display
Resolution : 1080 × 1920
Active Area : 67.82 × 120.58 mm
Outline Dimensions : 69.74 × 126.60 × 0.82 mm
Driver IC : RM67199
Touch Technology : On-Cell Capacitive Touch
Touch IC : GT1151
Interface : MIPI 4-Lane
Display Colors : 16.7M Colors (RGB × 8-bit)
Operating Temperature : -20°C to +70°C
Storage Temperature : -30°C to +80°C
The YX544HC01 is a premium 5.44 inch AMOLED display module designed for applications requiring excellent image quality, compact mechanical dimensions, and responsive on-cell capacitive touch. It features self-emissive pixels for true black levels and ultra-high contrast, integrated driver and touch controllers for easy system integration, and a slim profile suitable for portable and intelligent devices.
Basic Specifications
Display Size : 5.44 inch
Display Technology : AMOLED Display
Resolution : 1080 × 1920
Active Area : 67.82 × 120.58 mm
Outline Dimensions : 69.74 × 126.60 × 0.82 mm
Driver IC : RM67199
Touch Technology : On-Cell Capacitive Touch
Touch IC : GT1151
Interface : MIPI 4-Lane
Display Colors : 16.7M Colors (RGB × 8-bit)
Operating Temperature : -20°C to +70°C
Storage Temperature : -30°C to +80°C
