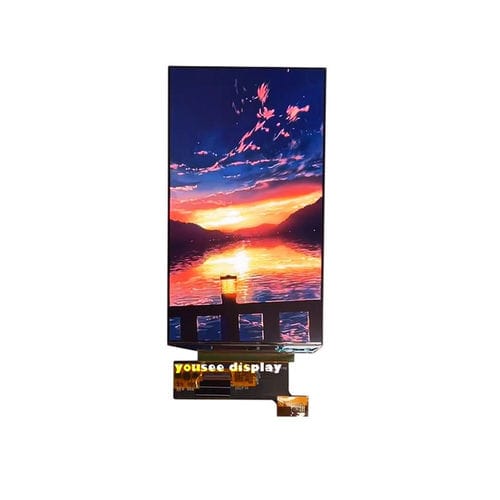

Capacitive touch screen display module YX601106

AMOLEDcolor1080 x 2160

Product Overview
The YX601106 is a 6.01-inch AMOLED display module for embedded systems and intelligent devices. The self-emissive AMOLED panel (no backlight) provides true blacks, high contrast, wide viewing angles and reduced thickness and power consumption compared with conventional LCDs, supporting compact industrial and portable equipment.

Key Features

• Display Size: 6.01 inch
• Resolution: 1080 × 2160 (Full HD+)
• Display Technology: AMOLED (self-emissive)
• Driver IC: VTDR6111
• Touch: Integrated On-Cell capacitive touch
• Touch Controller: CST148
• Interface: MIPI 4-Lane
• Module thickness: 0.773 mm
• Display colors: 16.7M
• Surface treatment: Hard Coating

Basic Specifications

• Display Size: 6.01 inch
• Display Technology: AMOLED
• Resolution: 1080 × 2160
• Active Area: 68.256 × 136.512 mm
• Outline Dimensions: 70.066 × 142.297 × 0.773 mm
• Driver IC: VTDR6111
• Touch Technology: On-Cell capacitive touch
• Touch IC: CST148
• Interface: MIPI 4-Lane
• Display Colors: 16.7M
• Surface Treatment: Hard Coating
• Environmental Compliance: RoHS

Mechanical
Mechanical drawings are provided for the module. Outline dimensions are 70.066 × 142.297 × 0.773 mm, suitable for compact industrial and portable electronic designs.

Technical specifications

• Model: YX601106
• Size: 6.01"
• Resolution: 1080 × 2160 (Full HD+)
• AMOLED technology (self-emissive pixels)
• Driver IC: VTDR6111
• On-Cell capacitive touch with CST148 touch controller
• Interface: MIPI 4-Lane
• Active area: 68.256 × 136.512 mm
• Outline: 70.066 × 142.297 × 0.773 mm (module thickness 0.773 mm)
• Color depth: 16.7M
• Surface: Hard Coating
• Compliance: RoHS
