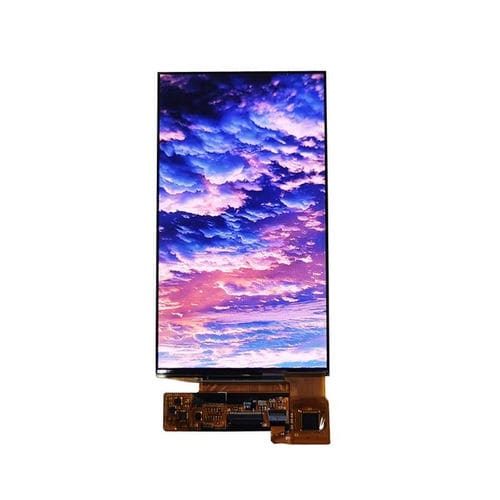

AMOLED display module YX011T90332

color126 x 2941.10"

Product Overview The YX011T90332 is a 1.1-inch LTPS AMOLED display module designed for wearable electronics and compact smart devices that require a small outline, low power consumption and high image performance. The self-emissive AMOLED panel provides true blacks, very high contrast, wide viewing angles and fast response times. The module integrates a 126 × 294 RGB resolution panel driven by the JD9613 IC and supports 3-wire and 4-wire SPI interfaces. Active area and outline dimensions make it suitable for thin mechanical designs and space-constrained applications.

Basic Specifications Display size: 1.1 inch
Display technology: LTPS AMOLED
Resolution: 126 × 294 (RGB)
Active area: 10.962 × 25.578 mm
Outline dimensions: 12.96 × 30.94 mm
Driver IC: JD9613
Interface: 3-wire SPI / 4-wire SPI
Display colors: 16.7 Million
Operating temperature: -20°C to +70°C
Storage temperature: -30°C to +80°C
Supply voltage: VCC 2.7–3.6 V

Optical Characteristics Surface luminance (typ.): 200 cd/m²
Contrast ratio (typ.): 60,000:1
NTSC color gamut: 100%
Viewing angle (typ.): 88°
Gamma: 2.2
Lifetime (T95): 24,000 hours

Operating Conditions Operating temperature: -20°C to +70°C
Storage temperature: -30°C to +80°C
Supply voltage: VCC 2.7–3.6 V

Mechanical / Additional Includes mechanical drawing and module outline images. Module target applications: wearable devices, portable smart electronics and other space-constrained products requiring a compact outline and energy-efficient display.

Technical specifications

• Model: YX011T90332
• Display size: 1.1 inch
• Resolution: 126 (RGB) × 294
• Panel type: LTPS AMOLED
• Active area: 10.962 × 25.578 mm
• Outline size: 12.96 × 30.94 mm
• Driver IC: JD9613
• Interfaces: 3-wire SPI and 4-wire SPI
• Surface luminance (typ.): 200 cd/m²
• Contrast ratio (typ.): 60,000:1
• Color gamut (NTSC): 100%
• Viewing angle (typ.): 88°
• Display colors: 16.7 Million
• Gamma: 2.2
• Lifetime (T95): 24,000 hours
• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Supply voltage: VCC 2.7–3.6 V
