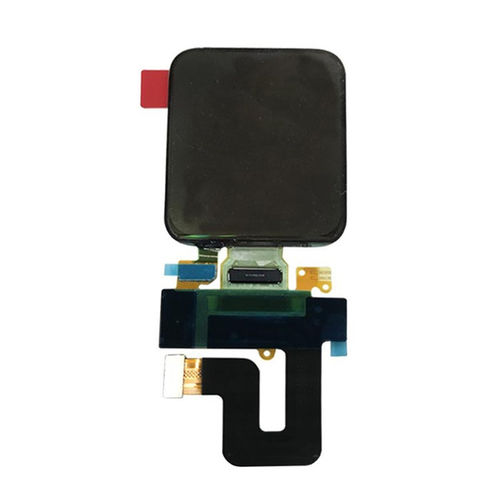

AMOLED display module YX1784AC63.A

color368 x 4481.77"

Overview
The YX1784AC63A is a 1.78-inch LTPS AMOLED display module engineered for wearable electronics and compact smart devices that require high-contrast, true-black reproduction and low power operation. The module integrates a RM69090 driver IC and supports both MIPI and SPI interfaces, delivering a 368×448 resolution in a compact mechanical outline.

Key features

• Model: YX1784AC63A
• Display size: 1.78 inch
• Resolution: 368 × 448
• Display technology: LTPS AMOLED (self-emissive)
• Colors: 16.7 Million
• Pixel arrangement: Real RGB
• Pixel pitch: 78 × 78 μm
• Active area: 28.7 × 34.94 mm
• LTPS glass outline: 30.6 × 37.99 mm
• Encapsulation glass outline: 30.6 × 37.24 mm
• Driver IC: RM69090
• Interface: MIPI / SPI
• Viewing direction: All O'Clock

Basic Specifications (table)
Item : Specification
Display Size : 1.78 inch
Display Technology : LTPS AMOLED Display
Resolution : 368 × 448
Display Colors : 16.7 Million
Active Area : 28.7 × 34.94 mm
LTPS Glass Outline : 30.6 × 37.99 mm
Encapsulation Glass Outline : 30.6 × 37.24 mm
Pixel Pitch : 78 × 78 μm
Driver IC : RM69090
Interface : MIPI / SPI
Operating Temperature : -20°C to +70°C
Storage Temperature : -40°C to +80°C

Optical Characteristics
Parameter : Typical
Display Technology : LTPS AMOLED
Resolution : 368 × 448
Display Colors : 16.7 Million
Pixel Arrangement : Real RGB
Viewing Direction : All O'Clock
Interface : MIPI / SPI
Driver IC : RM69090

Operating Conditions
Item : Range
Operating Temperature : -20°C to +70°C
Storage Temperature : -40°C to +80°C
Battery Voltage : 2.9–4.8 V
I/O Voltage : 1.65–1.95 V

Mechanical Drawing
Mechanical drawing and module outlines are provided for design integration and show active area and glass outline dimensions for mechanical mounting and enclosure design.

Technical specifications

• Model: YX1784AC63A
• Display size: 1.78 inch
• Resolution: 368 × 448
• Display technology: LTPS AMOLED (self-emissive)
• Colors: 16.7 Million
• Pixel arrangement: Real RGB
• Pixel pitch: 78 × 78 μm
• Active area: 28.7 × 34.94 mm
• LTPS glass outline: 30.6 × 37.99 mm
• Encapsulation glass outline: 30.6 × 37.24 mm
• Driver IC: RM69090
• Interface: MIPI / SPI
• Viewing direction: All O'Clock
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +80°C
• Battery voltage: 2.9–4.8 V
• I/O voltage: 1.65–1.95 V
