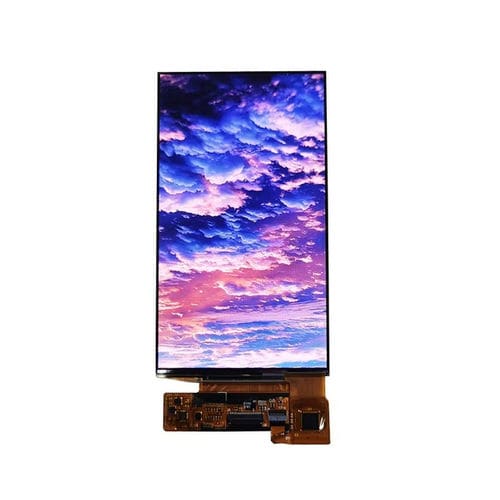

AMOLED display module YX4104AC63.A

touch screencapacitive touch screencolor

Description
The YX4104AC63.A is a 4.1-inch LTPS AMOLED display module engineered for wearable electronics and compact smart devices that require accurate color reproduction, fast response and energy efficiency. Using self-emissive pixels, the module provides true black levels, very high contrast and wide color gamut while reducing power consumption compared with backlit displays. The module integrates on-cell capacitive touch and supports a MIPI interface for smooth graphics and responsive touch performance, with an operating temperature range suitable for portable electronics.

Basic Specifications

• Model: YX4104AC63.A
• Display size: 4.1 inch (LTPS AMOLED)
• Resolution: 568 × 1232 pixels
• Active area: 43.55 × 94.47 mm; Outline: 45.65 × 97.22 mm
• Driver IC: RM69A10; Touch IC: GT9895
• Touch: On-cell capacitive touch
• Interface: MIPI
• Display colors: 16.7 Million; Pixel arrangement: Real RGB
• Operating temperature: -20°C to +70°C; Storage temperature: -30°C to +80°C

Optical Characteristics

• Display technology: LTPS AMOLED
• Resolution: 568 × 1232
• Brightness (typical): 280 cd/m²
• Contrast ratio (typical): 100000:1
• Color gamut: 105% NTSC
• Color temperature (typical): 7500 K
• Viewing angle (typical): 80°

Mechanical Drawing
Mechanical drawing and dimensional artwork are provided for the module (mechanical reference image available on the product page).

Technical specifications

• Model: YX4104AC63.A
• Display technology: LTPS AMOLED
• Resolution: 568 × 1232 pixels
• Active area: 43.55 × 94.47 mm; Outline: 45.65 × 97.22 mm
• Driver IC: RM69A10; Touch IC: GT9895
• Touch: On-cell capacitive touch; Interface: MIPI
• Brightness: 280 cd/m² (typical); Contrast ratio: 100000:1
• Color gamut: 105% NTSC; Color temperature: 7500 K
• Viewing angle: 80°; Display colors: 16.7M; Pixel arrangement: Real RGB
• Operating temperature: -20°C to +70°C; Storage temperature: -30°C to +80°C
