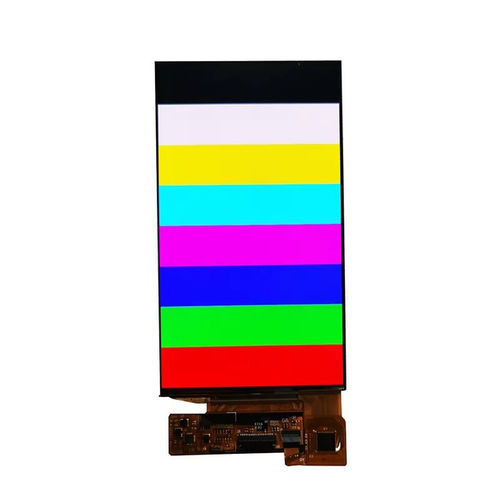

Capacitive touch screen display module YX51006ACTAMOLEDcolor1920 x 1080
Add to favorites
Compare this product
Characteristics
- Screen type
- AMOLED, capacitive touch screen
- Type
- color
- Format
- 1920 x 1080, full HD
- Screen size
- 5"
- Applications
- industrial
- Interface
- MIPI
- Other characteristics
- wide-viewing angle, with built-in electronics, high-contrast, with cover glass
- Length
72.6 mm
(2.858 in)- Width
142.7 mm
(5.6181 in)- Thickness
2.71 mm
(0.107 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -43 °C
(-45 °F)
Description
Product Overview
The YX51006ACT is a 5.1-inch AMOLED display module designed for industrial and embedded applications requiring accurate color reproduction, high contrast and reliable capacitive touch interaction. The self-emissive AMOLED panel provides true blacks, wide viewing angles and fast response suitable for dark‑interface and dynamic-display use.
Key Features
Basic Specifications
Display Size: 5.1 inch
Display Technology: AMOLED Display
Resolution: 1080 × 1920
Active Area: 63.007 × 112.992 mm
Outline Dimensions: 72.6 × 142.7 × 2.71 mm
Driver IC: SH8801A
Touch Technology: G+F+F Capacitive Touch
Touch IC: BLT7406
Interface: MIPI
Brightness: 337 cd/m² (Typ.)
Contrast Ratio: 20000:1 (Typ.)
Color Gamut: 110%
Viewing Direction: All Direction
Operating Temperature: -43°C to +70°C
Storage Temperature: -55°C to +80°C
Optical Characteristics
Display Technology: AMOLED
Resolution: 1080 × 1920
Brightness: 337 cd/m² (Typ.)
Contrast Ratio: 20000:1
Color Gamut: 110%
Viewing Angle: 80°
Response Time: 25 ms
Operating Conditions
Operating Temperature: -43°C to +70°C
Storage Temperature: -55°C to +80°C
Mechanical Drawing
Mechanical drawing and outline dimensions provided.
Technical specifications
The YX51006ACT is a 5.1-inch AMOLED display module designed for industrial and embedded applications requiring accurate color reproduction, high contrast and reliable capacitive touch interaction. The self-emissive AMOLED panel provides true blacks, wide viewing angles and fast response suitable for dark‑interface and dynamic-display use.
Key Features
- Display Size: 5.1 inch
- Resolution: 1080 × 1920 (Full HD)
- Display Technology: AMOLED (self‑emissive)
- Driver IC: SH8801A
- Touch Technology: G+F+F capacitive touch
- Touch IC: BLT7406
- Interface: MIPI
- EMI shielding layer
- AF-coated cover glass with 7H surface hardness
- Wide operating temperature: -43°C to +70°C (storage -55°C to +80°C)
Basic Specifications
Display Size: 5.1 inch
Display Technology: AMOLED Display
Resolution: 1080 × 1920
Active Area: 63.007 × 112.992 mm
Outline Dimensions: 72.6 × 142.7 × 2.71 mm
Driver IC: SH8801A
Touch Technology: G+F+F Capacitive Touch
Touch IC: BLT7406
Interface: MIPI
Brightness: 337 cd/m² (Typ.)
Contrast Ratio: 20000:1 (Typ.)
Color Gamut: 110%
Viewing Direction: All Direction
Operating Temperature: -43°C to +70°C
Storage Temperature: -55°C to +80°C
Optical Characteristics
Display Technology: AMOLED
Resolution: 1080 × 1920
Brightness: 337 cd/m² (Typ.)
Contrast Ratio: 20000:1
Color Gamut: 110%
Viewing Angle: 80°
Response Time: 25 ms
Operating Conditions
Operating Temperature: -43°C to +70°C
Storage Temperature: -55°C to +80°C
Mechanical Drawing
Mechanical drawing and outline dimensions provided.
Technical specifications
- Model: YX51006ACT
- Display Size: 5.1 inch
- Resolution: 1080 × 1920
- Active Area: 63.007 × 112.992 mm
- Outline Dimensions (mm): 72.6 × 142.7 × 2.71
- Display Type: AMOLED
- Brightness (Typ.): 337 cd/m²
- Contrast Ratio (Typ.): 20000:1
- Color Gamut: 110%
- Viewing Direction: All Direction
- Driver IC: SH8801A
- Touch: G+F+F capacitive, Touch IC BLT7406
- Interface: MIPI
- Surface Hardness: 7H
- Operating Temp: -43°C to +70°C
- Storage Temp: -55°C to +80°C
