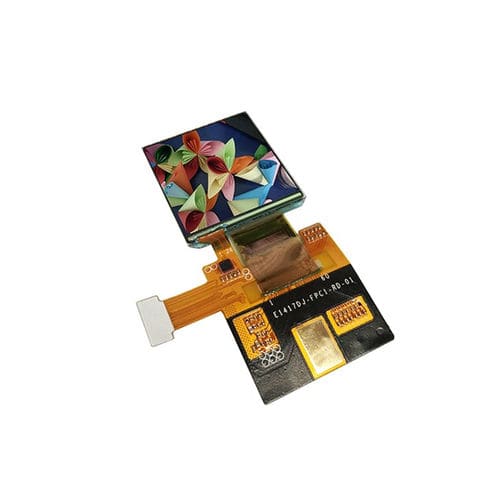

AMOLED display module YX024JMV-N50-6DP0

color450 × 6002.88"

Product Overview
The YX024JMV-N50-6DP0 Yousee is a 2.4-inch rigid LTPS AMOLED display module designed for portable electronics and embedded systems. It uses self-emissive pixels to deliver true blacks, high contrast, wide viewing angles and fast response, while supporting high brightness and low power consumption applications.

Key Features

• Display size: 2.4 inch
• Resolution: 450 × 600 (311 PPI)
• Display technology: Rigid LTPS AMOLED
• Driver IC: RM690B0
• Interfaces: SPI / MCU / MIPI
• Typical brightness: 800 cd/m²
• Response time: 2 ms
• Operating temperature range: -20°C to +80°C

Basic Specifications

• Model: YX024JMV-N50-6DP0
• Active area: 36.72 × 48.96 mm
• Outline dimensions: 38.72 × 51.56 mm
• Pixel density: 311 PPI
• Contrast ratio: 100000:1
• Color temperature: 7500 K

Optical Characteristics

• Brightness (typ.): 800 cd/m²
• Contrast ratio (typ.): 100000:1
• Viewing angle: 80° (all directions)
• Response time: 2 ms

Operating Conditions

• Operating temperature: -20°C to +80°C
• Storage temperature: -40°C to +80°C
• Interfaces: SPI / MCU / MIPI
• Driver IC: RM690B0

Mechanical & Mounting
Compact mechanical outline with an active area of 36.72 × 48.96 mm and overall outline of 38.72 × 51.56 mm. Refer to the product drawing on the page for dimensions and mounting details.

Application

• Portable electronics
• Embedded systems
• Devices requiring high brightness, high contrast and low power in dark mode

Technical Specifications

• Display size: 2.4 inch
• Resolution: 450 × 600
• Display technology: Rigid LTPS AMOLED
• Driver IC: RM690B0
• Interface: SPI / MCU / MIPI
• Brightness: 800 cd/m² (Typ.)
• Operating temperature: -20°C to +80°C
