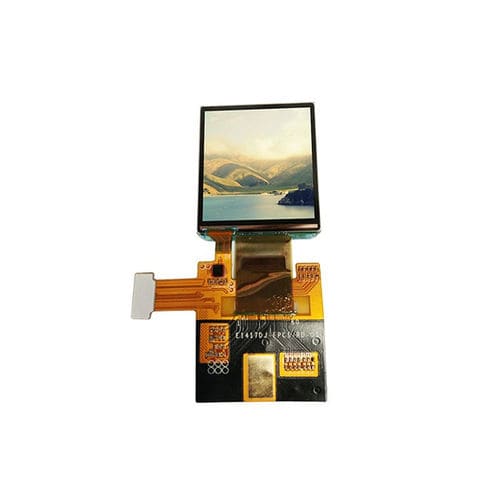

AMOLED display module YX1414AC41.A

color320 x 3601.41"

Product Overview
The YX1414AC41.A is a 1.41-inch LTPS AMOLED display module engineered for wearable devices and compact smart electronics that require true black levels, wide viewing angles and low power consumption. AMOLED is self-emissive, eliminating the need for a backlight and enabling high contrast, vibrant colors and fast response times.

Key Features

• Resolution: 320 × 360
• Display Technology: LTPS AMOLED
• Driver IC: RM67162
• Interface: MIPI
• Brightness: 350 nits (typ.)
• Compact active area and outline suitable for space-constrained applications

Basic Specifications

• Display Size: 1.41 inch
• Active Area: 23.84 × 26.82 mm
• Outline Dimensions: 26.04 × 31.78 mm
• Resolution: 320 × 360
• Display Colors: 16.7 Million
• Pixel Pitch: 74.49 × 74.49 μm
• Driver IC: RM67162
• Interface: MIPI
• Brightness: 350 nits (Typ.)

Optical Characteristics

• Brightness: 350 cd/m² (typical)
• Contrast Ratio: 10,000:1
• Color Gamut: 105% NTSC
• Response Time: 2 ms
• Viewing Angle: 80° (all directions)
• Gamma: 2.2

Operating Conditions

• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +80°C
• Display Interface: MIPI

Mechanical / Physical

• Active area: 23.84 × 26.82 mm
• Outline size: 26.04 × 31.78 mm
• Diagonal: 1.413 inch

Application Examples

• Smart watches and wearable devices
• Medical wearable and portable healthcare devices
• IoT devices and compact smart electronics

Technical Specifications

• Model: YX1414AC41.A
• Display Size: 1.41 inch
• Resolution: 320 × 360
• Display Technology: LTPS AMOLED
• Driver IC: RM67162
• Interface: MIPI
• Active Area: 23.84 × 26.82 mm
• Outline Dimensions: 26.04 × 31.78 mm
• Pixel Pitch: 74.49 × 74.49 μm
• Display Colors: 16.7 Million
• Brightness: 350 nits (Typ.)
• Contrast Ratio: 10,000:1
• Color Gamut: 105% NTSC
• Response Time: 2 ms
• Viewing Angle: 80° (All Directions)
• Gamma: 2.2
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +80°C
