slurry pump / electric / self-priming / centrifugal
L

{{requestButtons}}

Characteristics

  • Media:

    slurry

  • Operation:

    electric

  • Priming:

    self-priming

  • Type:

    centrifugal

  • Domain:

    industrial

  • Other characteristics:

    mechanical, small, cantilevered, seal, transport, metal

  • Flow:

    Max.: 9,108 m³/h (321,645.9845 ft³/h)

    Min.: 2.34 m³/h (82.6363 ft³/h)

  • Head:

    Max.: 60 m (196'10")

    Min.: 6 m (19'08")

  • Power:

    Max.: 1,200 kW (1,631.55 hp)

    Min.: 7.5 kW (10.2 hp)

Description

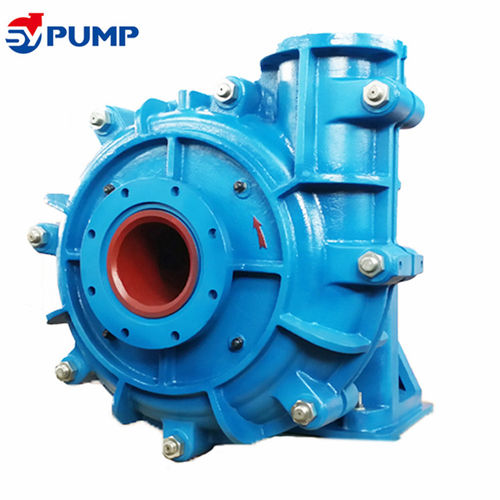

Type L(R) pumps are cantilevered, horizontal, centrifugal slurry pumps, which are also called light duty slurry pump. They are suitable for delivering low abrasive low density slurry for metallurgical, mining, coal and building material departments. The shaft seal can adopt gland seal, expeller seal or mechanical seal.

Type L(R) pumps operate in high speed with small volumes and light weight to save floor area. It is mainly used to transport the slurry which contains fine particle size and weight concentration not more than 30%. The liner and impeller of this pump can be changeable ,eight with anti-abrasive metal or rubber material.
