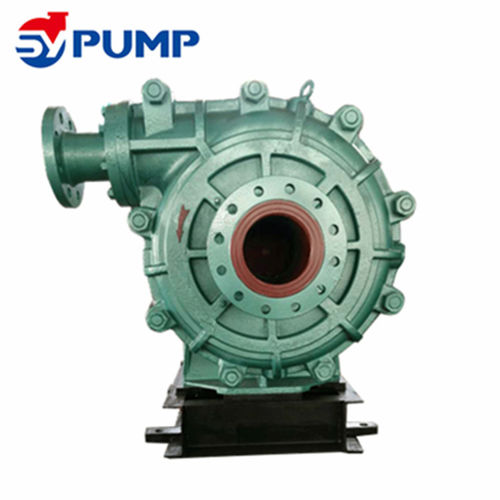

Centrifugal pump ZGB

waterslurryoil

ZGB(P) slurry pumps is horizontal cantilever single-stage, single-suction, double-case and high head of delivery centrifugal slurry pump. Series ZGB(P) UP-to-date generation Slurry Pump with large capacity, high head, multi-stages in series to remove ash & sludge and to deliver liquid-solids mixture. The series of pump has the advantages of reasonable construction, high efficiency, reliable operation and easy maintenance. Features: ◆ Pump Head---Double Casing pump is vertical split, the discharge can be installed at 8 different positions with an interval of 45°. ◆ Wide passage, non-clogging and good performance of NPSH. ◆ Expeller seal combined with packing seal and mechanical seal would be adopted to guarantee the slurry from leakage. ◆ The metric bearing with oil lubrication, reasonable lubrication and cooling systems ensure the bearing to be operated under the low temperature. ◆ The material of wet parts have the good performance of anti-wearing and anti-corrosion. ◆ The pump can be operated in series with multi-stage within permissible pressure. The permissible maximum working pressure is 3.6Mpa. Specification: ◆ Size 65-350 mm ◆ Capacity: 0-500 m³/h ◆ Heads 0-90 m Applications: ◆ Waste Water Treatment ◆ Mineral Dressing ◆ Copper Tailing ◆ Iron Ore ◆ Paper Industry ◆ Concentration Processing ◆ Minerals Flotation ◆ Quarrying ◆ Mining Dredging ◆ Sewage
