- Hydraulics - Pneumatics
- Pump
- Canned motor pump
- Shimge Pump Industry (Zhejiang) Co.,Ltd

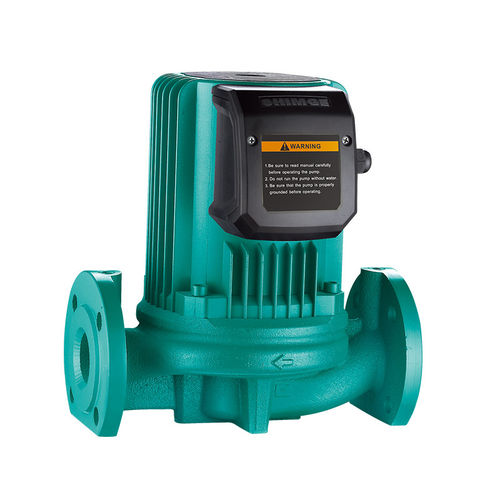

Canned motor pump XP waterairelectric
Add to favorites
Compare this product
Characteristics
- Technology
- canned motor
- Fluid
- water, air
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial, solar
- Applications
- circulation, boiler
- Other characteristics
- heating
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 30 m³/h
(1,059.44 ft³/h)- Pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145.038 psi)- Head
Min.: 0 m
(0'00" )Max.: 18 m
(59'00" )- Power
Min.: 300 kW
(407.89 hp)Max.: 1,300 kW
(1,767.51 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 110 °C
(230 °F)- Length
Min.: 202 mm
(8 in)Max.: 290 mm
(11 in)- Width
Min.: 200 mm
(7.87 in)Max.: 300 mm
(11.81 in)- Height
Min.: 165 mm
(6.5 in)Max.: 215 mm
(8.46 in)- Weight
Min.: 6.6 kg
(14.55 lb)Max.: 24 kg
(52.91 lb)
Description
Single Speed Circulation Pumps XP
Model:XP
The following is about Single Speed Circulation Pumps XP related XP, I hope to help you better understand Single Speed Circulation Pumps XP.
Single Speed Circulation Pumps XP
Application Limits ◎
Liquid temperature: +2℃～ +110℃
Maximum ambient temperature +40℃
Maximum system pressure 10bar
Protection level: IP44
Mains connection: 220V/50Hz、380V/50Hz
Insulation class: F
Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water
Installation: the motor shaft must be kept in horizontal direction
pH: 6.5 to 8.5
Applications Fields
For HVAC systems such as air energy hot water circulation system, solar hot water circulation system, boiler heating system, pressurization of domestic tap water, industry hot or cold water circulation system, etc.
Features ◎
Wet rotor, canned motor, low noise, no leakage
Silicon carbide friction pair, which is very wear-resisting
Catalogs
General Catalogue
57 Pages
