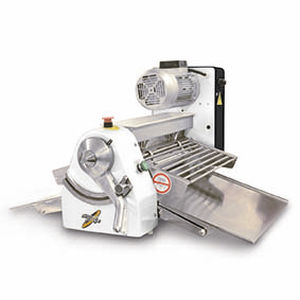

Automatic dough sheeter SM-520 series

single exit

SM-520A • MODEL WITH SUPPORT x • MOTOR POWER 0,37 kW • NET WEIGHT MACHINE 80 kg • WORKING WIDTH 520 mm • CONVEYOR BELT LENGTH 2 x 420 mm • SPACE BETWEEN ROLLERS 1 - 30 mm • VOLTAGE 230/400V 3Ph 50Hz • Table model. • Working width: 520 mm. • Robust machine. • Speed 50cm/sec • Space between rollers 1-30mm • Scrapers can be removed easily • Manual operation with push button. • Table can be raised after operation. SM-520S • MODELWITH SUPPORT x • MOTOR POWER - 0,37 - kW • NETWEIGHT MACHINE 100 - kg • WORKING WIDTH 520 mm • CONVEYOR BELT LENGTH 2 x 670 mm • SPACE BETWEEN ROLLERS - 1 - 30 mm • VOLTAGE 230/400V 3Ph 50Hz • Table model. • Working width: 520 mm. • Robust machine. • PVC conveyor belt/520mm width • Speed 50cm/sec • Space between rollers 1-30mm • Scrapers can be removed easily • Manual operation with push button. • Table can be raised after operation. SM-520F • MODEL WITH SUPPORT x • MOTOR POWER 0,55 kW • NET WEIGHT MACHINE 168 kg • WORKING WIDTH 520 mm • CONVEYOR BELT LENGTH 2 x 980 mm • SPACE BETWEEN ROLLERS 1 - 30 mm • VOLTAGE 230/400V 3Ph 50Hz • Dough sheeter with support on wheels. • Working width: 520 mm. • Robust machine. • PVC conveyor belt/ 520mm width • Speed 50cm/sec • Space between rollers 1-30mm • Scrapers can be removed easily • Manual operation with handle. • Table can be raised after operation.
