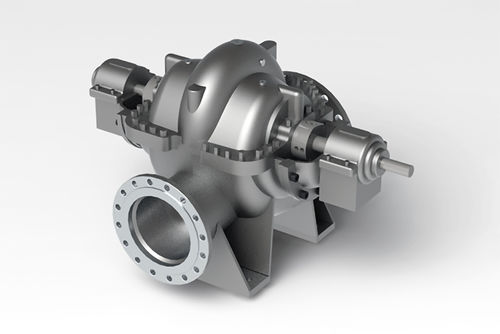

Impeller pump SBM waterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial
- Applications
- cooling, circulation, suction
- Other characteristics
- single-stage, double, axial, heating
- Flow
10,000 m³/h
(353,146.66721 ft³/h)- Pressure
2.5 MPa
- Head
240 m
(787'04" )- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 160 °C
(320 °F)
Description
Single-stage, double-suction, axially split, supported at both ends, horizontal, and foot-mounted; double-suction impeller makes the pump self-balance axial force, and the split structure makes it unnecessary to dismantle the pipeline and driver during pump maintenance. A variety of bearing structure designs can meet the requirements of different working conditions.
◉ Application:
Clean or slightly polluted liquids, general water supply, cooling water circulation, power plants' district heating, pulp and paper, pipelines, offshore platforms, etc.
