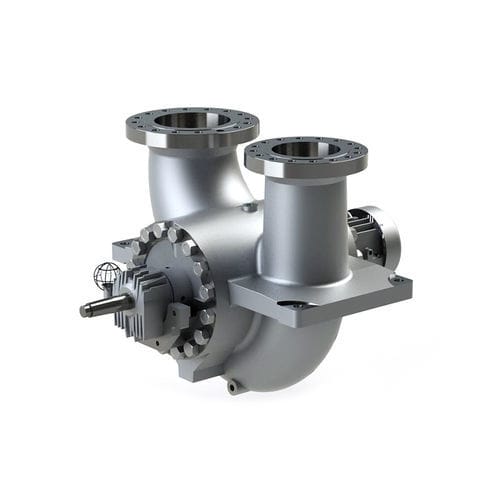

Impeller pump SBR for chemicalswith electric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- for chemicals
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- industrial, chemical, refinery
- Applications
- outlet, suction
- Protection level
- standard
- Other characteristics
- double, two-stage, radial
- Flow
2,270 m³/h
(80,164.29346 ft³/h)- Pressure
10 MPa
- Head
740 m
(2427'09" )- Fluid temperature
Max.: 450 °C
(842 °F)Min.: -50 °C
(-58 °F)
Description
Single or two-stage, radially split, supported at both ends, horizontal, centerline installation, rigid shaft design for heavy workstations. The first stage impeller can adopt double suction impeller to reduce pump NPSHr, pump body double volute structure, radial force balance; API standard sealing cavity, suitable for various sealing flushing schemes. The pump inlet and outlet are vertically upwards.
◉ Application:
Clean or polluted, low temperature or high temperature, chemically neutral or corrosive liquids, refinery, petrochemical, chemical, coal chemical, power station, thermal power plant, offshore platform, pipeline and pressurization, etc.
