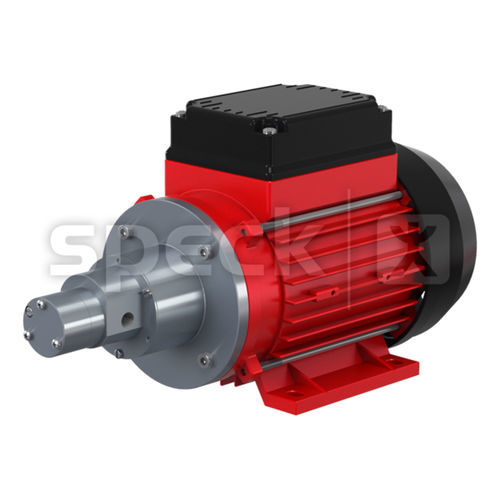

Oil pump ZY-13...-MKfueldieselself-priming
Add to favorites
Compare this product
Characteristics
- Fluid
- oil, fuel
- Operation
- diesel
- Priming
- self-priming
- Technology
- gear
- Mobility
- stationary
- Domain
- industrial
- Applications
- circulation
- Other characteristics
- suction, close-coupled
- Flow
Min.: 0 l/h
(0 us gal/h)Max.: 220 l/h
(58.11785 us gal/h)- Pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145.038 psi)- Power
120 W
(0.16 hp)- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)- Length
255 mm, 264 mm
(10 in, 10 in)- Width
106 mm
(4.17 in)- Height
145 mm
(5.71 in)- Weight
3.5 kg, 3.75 kg, 4 kg
(7.72 lb, 8.27 lb, 8.82 lb)
Description
Externally splined displacement pump
Material design
Stainless steel
Suction connection
G 1/8
Pressure connection
G 1/8
Sealing
Separating can / Magnetic drive
Dimensions (WHD)
106 x 145 x 255–264 mm
Applications
Vehicles construction / Automotive
Delivery of fuel in construction machinery
Circulation of canola oil and bio diesel in trucks
Advantages
Easy installation
Magnetic coupled version is leakage- and maintenance-free
Only little volume differences over the entire pressure range due to displacement principle
