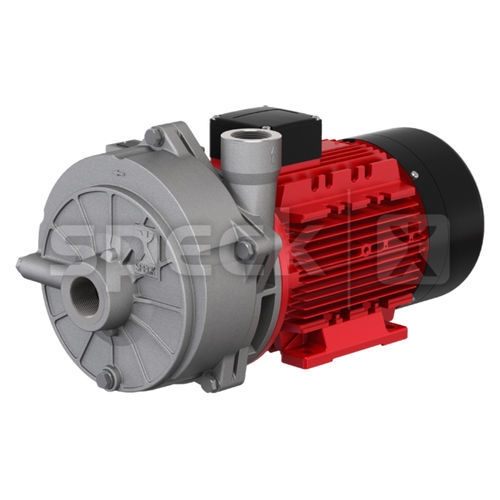

Water pump VN-95with electric motorself-primingliquid ring
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Technology
- liquid ring
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- suction, recovery
- Material
- plastic
- Protection level
- standard
- Other characteristics
- suction, mechanical, standard, single-stage, close-coupled, dry
- Flow
Max.: 220 m³/h
(7,769.22668 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Pressure
Max.: 55 mbar
(0.798 psi)Min.: 0 mbar
(0 psi)- Power
3 kW, 4.6 kW
(4.08 hp, 6.25 hp)- Fluid temperature
Max.: 200 °C
(392 °F)Min.: 0 °C
(32 °F)- Weight
75 kg
(165.35 lb)
Description
Single-stage pumps with valves and port cylinder
Close-coupled version with B35 close-to-standard motors
Bracket version with B5 standard motors
Sound pressure level 65 db(A)
Media
dry and humidified gases
Material design
Stainless steel
Copper alloy
Suction connection
G 1 1/2
Pressure connection
G 1 1/2
Sealing
Mechanical seal
Dimensions (WHD)
Applications
Further applications
Evacuation of central vacuum systems
Plastics industry
Vacuum calibration for the manufacturing of plastic profiles
Production of polystyrene parts (EPP / EPS)
Chemical industry
Distillation / separation of liquids
Recovery of condensates (solvents)
Advantages
Up to 5-fold delivery of liquid compared to conventional liquid ring vacuum pumps
Stable suction capacity even when liquid is delivered
Easy and simple installation
Minimum operating costs due to demand-oriented power consumption
Patented hydraulic and assembly system
Catalogs
liquid ring vacuum pump
36 Pages
Complete product range
76 Pages
