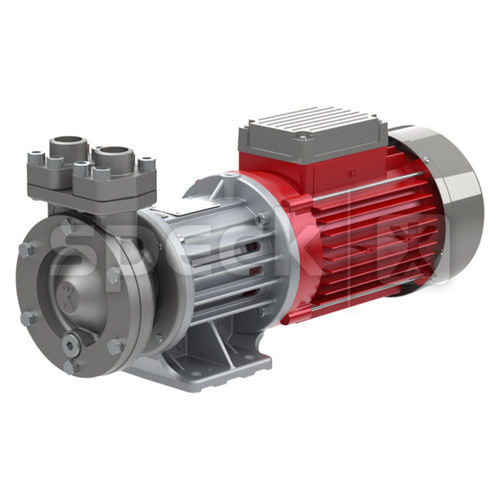

Water pump CY-6091-MKwith electric motorself-primingregenerative turbine
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Technology
- regenerative turbine
- Mobility
- stationary
- Domain
- industrial
- Applications
- cooling, control, reverse
- Protection level
- maintenance-free
- Other characteristics
- compact, suction, close-coupled
- Flow
Max.: 200 l/min
(52.83441 us gal/min)Min.: 0 l/min
(0 us gal/min)- Head
Max.: 100 m
(328'01" )Min.: 0 m
(0'00" )- Power
Max.: 5.5 kW
(7.48 hp)Min.: 2.8 kW
(3.81 hp)- Fluid temperature
Max.: 200 °C
(392 °F)Min.: -60 °C
(-76 °F)- Length
501 mm, 582 mm
(20 in, 23 in)- Width
160 mm, 200 mm
(6.3 in, 7.87 in)- Height
247 mm, 281 mm
(9.72 in, 11.06 in)- Weight
Max.: 70 kg
(154.32 lb)Min.: 33 kg
(72.75 lb)
Description
Close-coupled pumps with magnetic coupling
Material design
Stainless steel
Suction connection
SAE 1; SAE 1 1/4
Pressure connection
SAE 1; SAE 1 1/4
Sealing
Separating can / Magnetic drive
Applications
Temperature control / Industrial cooling
Tempering of tool moulds
Railcars
Cooling of transformers in railcars
Advantages
Suitable for the delivery of gas shares
Steep characteristic curve
High pressures with compact design
Leakage-free and maintenance-free due to magnetic coupling
Possible reverse operation
