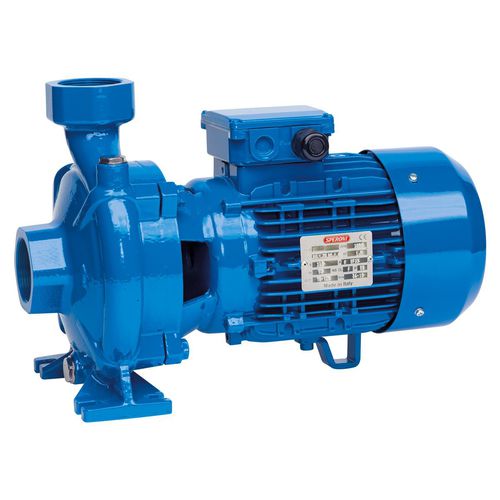

Centrifugal pump CFM-BR waterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- transfer, irrigation, feed, service, lift, spraying, suction
- Material
- stainless steel, cast iron, ceramic
- Voltage
- 400 V, 380 V
- Protection level
- IP55
- Other characteristics
- mechanical, seal
- Flow
Min.: 400 l/min
(105.66882 us gal/min)Max.: 450 l/min
(118.87742 us gal/min)- Head
Min.: 22 m
(72'02" )Max.: 57.5 m
(188'07" )- Power
Min.: 1.1 W
(0 hp)Max.: 5.5 W
(0.01 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 90 °C
(194 °F)- Length
394 mm, 430 mm, 465 mm, 540 mm
(15.512 in, 16.929 in, 18.307 in, 21.26 in)- Width
245 mm
(9.65 in)- Height
286 mm, 325 mm, 365 mm
(11.26 in, 12.8 in, 14.37 in)- Weight
Min.: 24.9 kg
(54.9 lb)Max.: 61 kg
(134.48 lb)
Description
Centrifugal monoblock with cast iron impeller. These machines are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. Used for a wide variety of applications in civil, agricultural, industrial or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high pressure system and any other general service requiring transfer of clean liquids.
LIMITS OF USE
- Total suction lift up to 7 mt.
- Continuous duty
ENGINE
- Two-Pole induction motor (n = 2850 min-1)
- Insulation Class F
- Protection IP 55
- Minimum Efficiency Index (BEP) MEI ≥ 0,4
MATERIALS
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Brass
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
