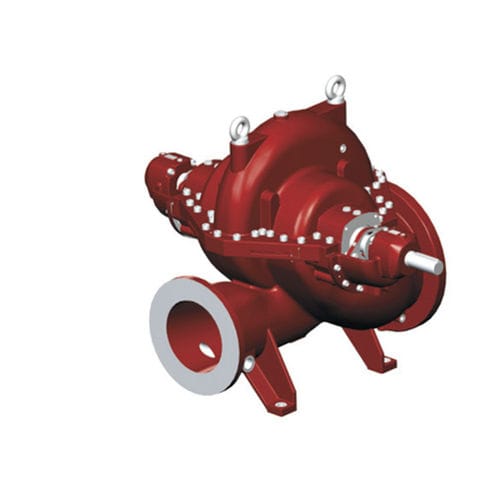

Water pump Hydrostreamoilelectriccentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- water, oil
- Operation
- electric
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial
- Applications
- discharge
- Other characteristics
- horizontal mount, with mechanical seals, vertical, split-case
- Flow
Max.: 9,000 m³/h
(317,832.00049 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 300 m
(984'03" )Min.: 0 m
(0'00" )
Description
Horizontal, vertical open shaft, vertical direct mounted electric motor or horizontal engine driven
DISCHARGE & PERFORMANCE
• 25 mm to 600 mm
FEATURES
• Axially split casing – rotating element can be removed without disturbing pipework
• High hydraulic efficiencies
• Double and single entry back to back impellers reduce end thrust, increase efficiency and bearing life. Shaft sleeves are standard
• 62 models. Module design for maximum interchangeability. Multiple impeller selections
• Wide choice of materials
• Grease or oil lubrication
• Soft packing or mechanical seals
• API options available for off site applications
• Approved to FM and/or UL standards
• In compliance with NFPA 20
