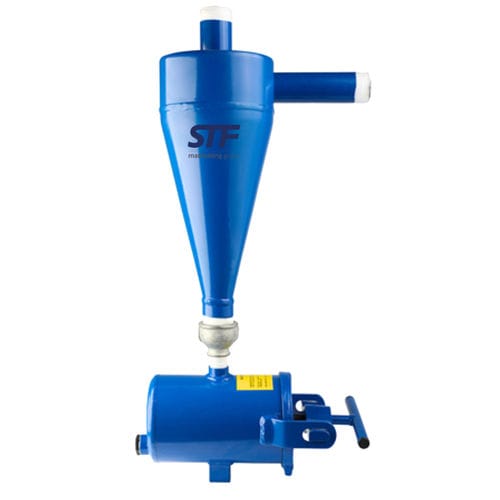

Compensation hydrocyclone F700

STF’s F700-HD hydrocyclone uses centrifugal force to remove solids, ensuring high separation efficiency. Ideal for agricultural and industrial systems, with manual or automatic sediment tank draining. The F700-HD hydrocyclone from STF Filters is an efficient gravel separation system designed for agricultural and industrial applications requiring solid particle removal from water. Water enters tangentially, creating a spiral flow where centrifugal force drives solids to the walls and into the sedimentation tank. Manufactured from ST37.2 carbon steel and protected with a 150-200 micron epoxy-polyester coating, the F700-HD withstands working pressures up to 10 bar (145 psi), ensuring durability under demanding conditions. Sediment tank cleaning is performed manually or automatically via a flush valve activated for a few seconds. Available in models handling flows from 10 to 1452 m³/h, the F700-HD maintains separation efficiency even when solids accumulate in the tank. Installation is straightforward thanks to its tangential inlet and compact body design. Equipped with an anti-vacuum valve and optional joint protection, the F700-HD hydrocyclone offers a robust, efficient, and low-maintenance solution to ensure water quality across various systems. F700-HD Hydrocyclone for Efficient Solid Separation STF’s F700-HD is designed to remove solids from water using centrifugal force, enhancing the efficiency of irrigation and industrial systems. Water enters tangentially, creating a vortex that separates particles into the sedimentation tank.
