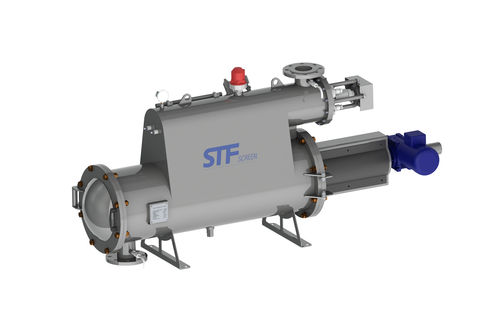

Liquid filter FMA 7000-UV

strainerindustrialfine

Self-cleaning electric filter with integrated UV lamps. Designed for fine filtration and low-flow disinfection. A compact, fully automatic, horizontal solution for industrial and municipal use. The FMA 7000 UV is a self-cleaning electric filter that combines fine filtration and UV disinfection in one compact unit. Designed for low-flow municipal and industrial installations, it delivers high water quality with minimal user intervention. This unit features a suction-scanning cleaning system with rotary nozzles, automatically activated via electrical control, eliminating the need for disassembly or manual cleaning. The housing and components are built from AISI 304/316 stainless steel with glass bead blasting for enhanced durability. It includes low-pressure amalgam UV lamps with 130 W of unit power, achieving disinfection levels above 400 J/m² at 55% UV transmittance. It offers a filtering surface of up to 4950 cm² with filtration grades of 50 and 25 µm. Operating between 2.5 and 10 bar, it handles fluid temperatures up to 40 °C. Its horizontal layout supports easy integration into compact technical rooms. The system uses 400 V AC three-phase power supply and 24 V DC control voltage. FMA 7000 UV filter: filtration and disinfection in one unit Combines fine mesh and UV lamps for an all-in-one solution in low-flow applications. Automatic cleaning keeps the system running with no manual intervention. Electric operation allows precise control and efficient cycle management. Horizontal design makes it ideal for compact spaces requiring high water quality.
