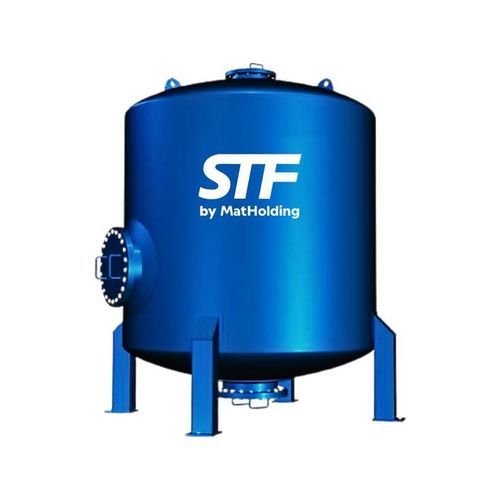

Water filter F6000

strainerindustrialirrigation

Overview
The F6000 is a high-media (multimedia) filter designed for demanding municipal and industrial water treatment. It provides reliable filtration of water with high loads of suspended solids, organic matter and algae, ensuring stable effluent quality for critical processes.

Key features

• Effective handling of high suspended solids and organic/algal content.
• Configurable for single-, dual- or multi-media operation to optimise performance.
• Modular design adaptable to various site layouts and maintenance regimes.
• Available in multiple sizes to match flow rates and retention requirements.

Filter media options

• Quartz sand for standard particle filtration
• Volcanic gravel (1–20 mm) to improve particle retention
• Anthracite for dual- or multi-media arrangements
• Catalytic media for iron (Fe) and manganese (Mn) removal
• Activated carbon to reduce chlorine, VOCs and pesticides

Performance and applications
The F6000 delivers stable water quality in critical processes and adapts to sectors such as municipal water treatment, industrial process water, stormwater reuse and agricultural irrigation protection. Media selection allows targeting of particle removal, Fe/Mn reduction and adsorption of organic contaminants.

Available sizes and variants
Available in series variants referenced F6025, F6036 and F6048 to match hydraulic and retention needs.

Materials and construction
Constructed from carbon steel with a WRAS/ACS-certified epoxy coating for corrosion protection and designed for demanding service conditions.

Technical specifications

• Model family: F6000
• Construction material: carbon steel
• Protective coating: WRAS/ACS-certified epoxy coating
• Maximum operating pressure: up to 8 bar
• Available sizes/variants: F6025, F6036, F6048
• Compatible filter media: quartz sand; volcanic gravel (1–20 mm); anthracite; catalytic media; activated carbon
• Primary removal targets: suspended solids, organic matter, algae; can reduce Fe/Mn, chlorine, VOCs and pesticides with appropriate media
• Typical applications: municipal water treatment, industrial process water, stormwater systems, agricultural filtration and irrigation protection
