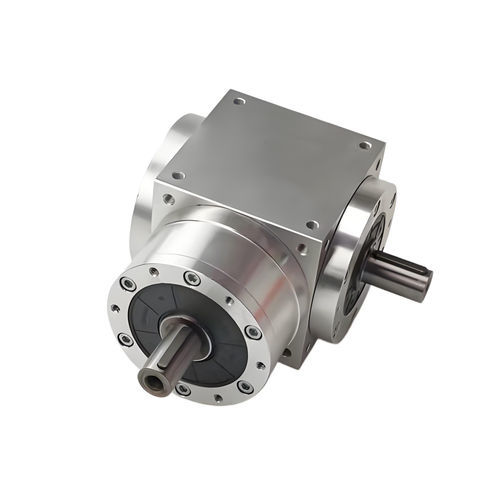

Bevel angle gearbox NT series

spiral bevelright angle90°

● Introduction A shaft-input right-angle spiral bevel gearbox features a shaft-input design, enabling flexible connection to power sources via couplings or other linkage mechanisms. The input and output shafts are oriented at a 90° angle, utilizing gear structures such as spiral bevel gears or standard bevel gears to redirect power. Its design prioritizes spatial optimization, making it ideal for industrial automation equipment, CNC machine tools, packaging machinery, and other applications requiring compact installation or directional power transmission. Housing Material Selection Guide: - Aluminum Housing: Preferred for automation systems and weight-sensitive applications. - Stainless Steel Housing: Designed for corrosion-resistant environments (food processing, pharmaceuticals, chemical, marine engineering). - Alloy Steel Housing: Engineered for heavy-duty equipment and smart warehouse lifting systems. Features - Input Shaft Design: Features a shaft input, allowing for flexible connection to power input mechanisms via couplings or other methods. - Compact Structure and Space-Saving: The internal bevel gear structure and perpendicular input/output shaft arrangement minimize equipment footprint, making it particularly suitable for confined installation spaces. - High Transmission Efficiency and Low Energy Consumption: Employs precision gear meshing and an optimized lubrication system, achieving a transmission efficiency of over 95% while reducing energy loss. - High Precision and Low Noise: The combination of helical or bevel gears with precision machining results in minimal backlash, accurate positioning, smooth operation, and low noise levels. - High Load Capacity and Durability: High-strength materials (such as premium forged steel) and heat treatment processes enhance load-bearing capacity, supporting significant radial and axial loads and extending service life. - Diverse Output Configurations: Available in various output configurations: hollow input with shaft output, hollow input with hollow output, shaft input with shaft output, and shaft input with hollow output. - Suitable Applications: Ideal for lifting platforms and single-motor driven multi-module systems. More information please view: https://www.honpine.com/products/Planetary-Reducer/Right-Angle-Planetary-Gearbox/Shaft-Input-Right-Angle-90-Degree-Spiral-Bevel-Gearbox.html
