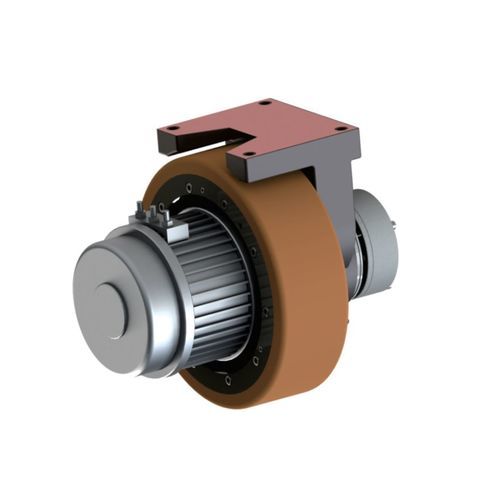

Brushless wheel motor PHD series

DCwith brakewith coder

Introduction
A horizontal drive wheel is a mechatronic integrated product in which the traction drive motor is horizontally mounted on the drive wheel. It integrates the traction motor with a speed feedback unit, reduction transmission mechanism, braking system, mounting and support structure, and rubber-coated wheel. It features low installation height, high precision, lightweight design, high load capacity, high torque, high speed, reliable performance, long service life, easy installation, and convenient maintenance.

Features

• Integrated traction motor, speed feedback unit (encoder), reduction gearbox, brake, wheel assembly and support structure
• Low installation height and lightweight design
• High precision, high load capacity, high torque and high speed
• Reliable performance and long service life
• Easy installation and convenient maintenance

Modular Design
The horizontal drive wheel integrates the drive motor, encoder, reduction gearbox, brake, wheel assembly, and support structure into a compact modular unit. This design significantly reduces intermediate transmission components such as external couplings, belts, and chains, thereby improving overall reliability and efficiency.

Safe and Reliable
With a 360° shielded design, the system provides strong anti-interference capability, ensuring stable signal transmission with no risk of data loss. The product complies with EU safety regulations, including CE and IEC standards.

Easy Maintenance
Featuring a plug-and-play design, component replacement is simple and does not require rewiring. The drive wheel enables precise control at any rotational speed, ensuring stable and accurate operation.
