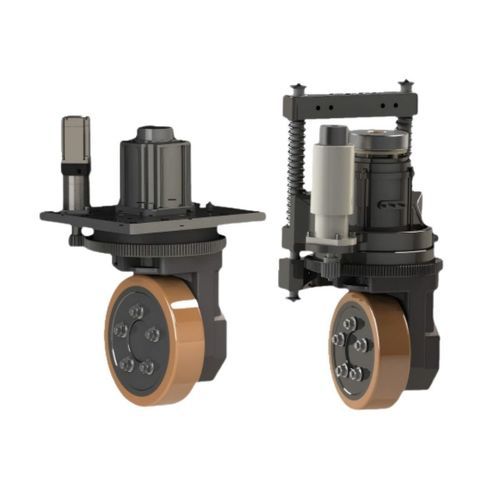

Brushless wheel motor PV series

DC24 V48 V

Introduction
This vertical drive wheel motor (PV Series) is engineered for AGVs, AMRs and forklifts with capacities up to 10 tonnes, addressing a wide range of forklift types. Typical applications target forklifts in the 1.5–3 t load class. Designed for the era of IoT, LiDAR navigation and 5G, the unit supports the conversion of conventional forklifts to assisted and fully autonomous vehicles through a compact, lightweight and intelligent integrated design.

Features

• Highly integrated architecture: motor, drive wheel and steering mechanism combined in one compact module to save vehicle space and simplify installation and maintenance.
• Heavy-duty capability: stable traction and steering under extreme loads for demanding material-handling and forklift-style AGV applications.
• High starting torque and gradeability: strong torque output for smooth starts at full load and effective climbing on inclines.
• Wide system compatibility: wide-voltage design supporting LiFePO4 (LFP), lead‑acid and ternary lithium batteries for easy vehicle upgrades.
• Modular product platform: multiple load capacities, wheel sizes and power configurations (PV15–PV45) to shorten development cycles and reduce spare-part inventories.
• Safety‑oriented dynamics: optimized for low- to medium-speed operation with a high‑rigidity structure to ensure controllability during heavy-load operation, rapid accel/decel and emergency braking.

Characteristics / Technical specifications

• Series: PV Series (PV15–PV45).
• Applicable vehicles: AGVs, AMRs, forklifts (up to 10 t); common use 1.5–3 t.
• Nominal voltage: mainly 48 V (selected models/support for 380 V in some variants).
• Power range: ~200 W to 12 000 W depending on model.
• Typical rated speed: commonly 3000 rpm (model-dependent ranges available).
• Drive ratios and travel speeds: multiple ratios and speeds per model (see table).
• Brake voltage: generally 24 V (some variants 24/48 V).
• Battery compatibility: LiFePO4 (LFP), lead‑acid, ternary lithium batteries.
• Design focus: modular platform, high rigidity, compact footprint and ease of integration for vehicle upgrades and rapid model development.
